Cabinets
The List of SLCC

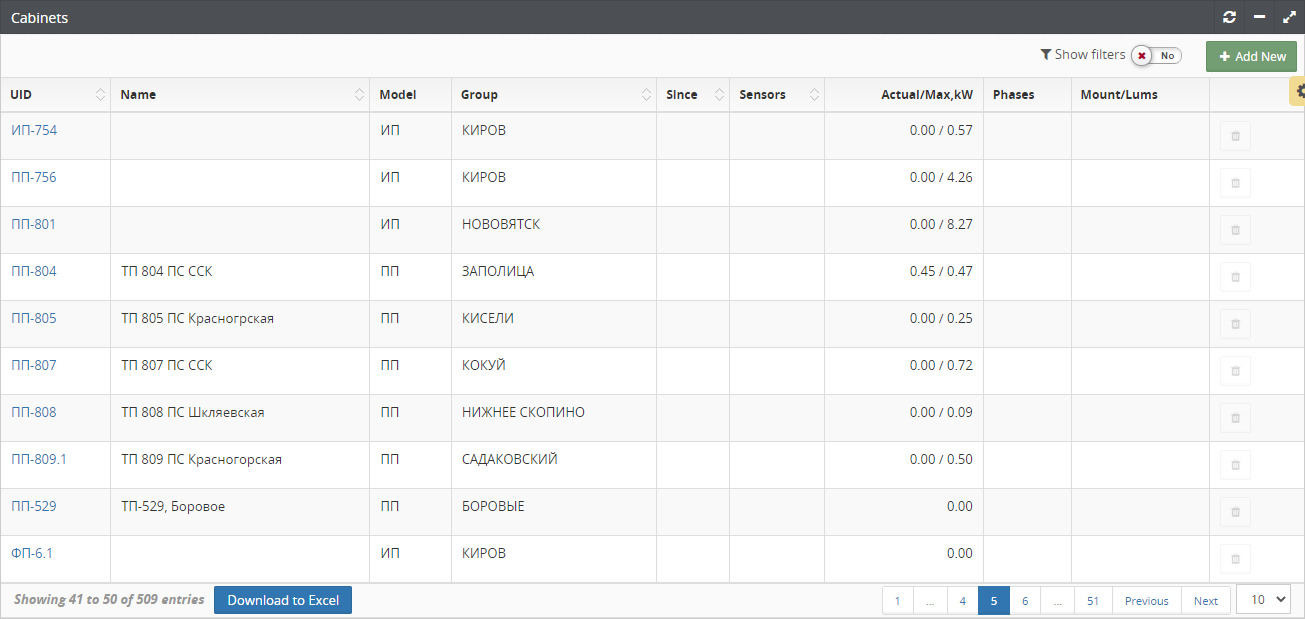

Appearance of the Cabinets list with all access rights.
See the GUI concept, paragraph table for how the table view works.
Table columns:
| Name | Description |
|---|---|
| UID | SLCC unique code |
| Name | Name SLCC |
| Model | SLCC type |
| Group | The name of the group SLCC united on a territorial basis |
| Since | |
| Sensors | |
| Actual / Max, kW | |
| Phases | |
| Mount / Lums |
Actions
- Go to the SLCC page by clicking the link in the UID column
- Creation of SLCC is performed by clicking on the button + Add New
- Deleting SLCC is performed by clicking on the button Trash
SLCC Page
Monitoring tab

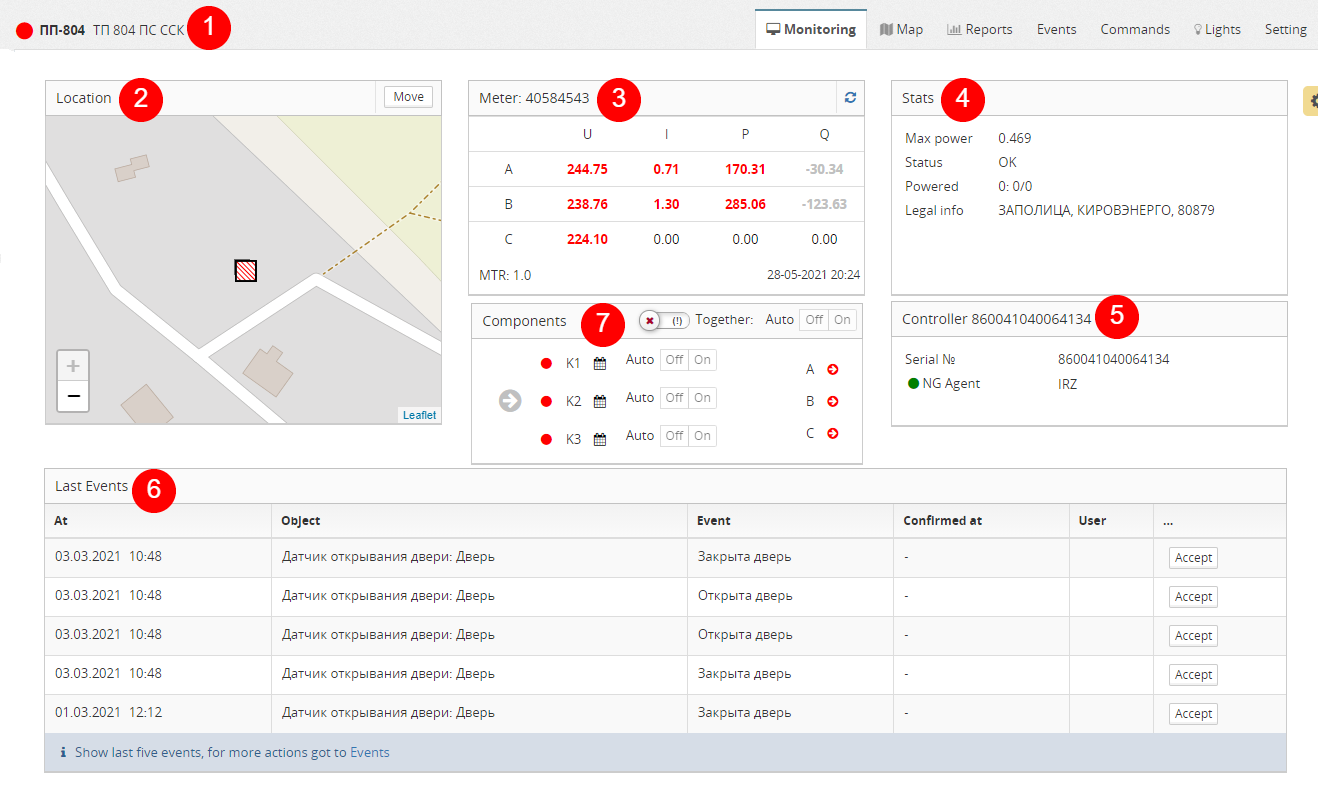

Display of the operational status of SLCC and its components.
Legend:
- Code, name and address of SLCC. Including icons:
- circle - the state of communication with the controller;
- lock - the state of the door;
- arrow to the right - the state of the input automaton.
- Location on the map;
- Information about the installed meter and the last read key readings;
- Parameters and statistics;
- Information about the installed SLCC controller;
- List of events related to SLCC;
- States of contactors and automatic devices;
Actions
- Changing the location of SLCC by clicking on the Move button in the Location block
- Forced reading of the electricity meter readings by pressing the Refresh button in the Meter block;
- Manual opening / closing of contactors in the unit Components
Changes to the location of the SLCC
Changing the location of the SLCC can be done in 2 ways:
- Set geographic coordinates in the input fields;
- Grab and drag the maker with the mouse.
Map Tab

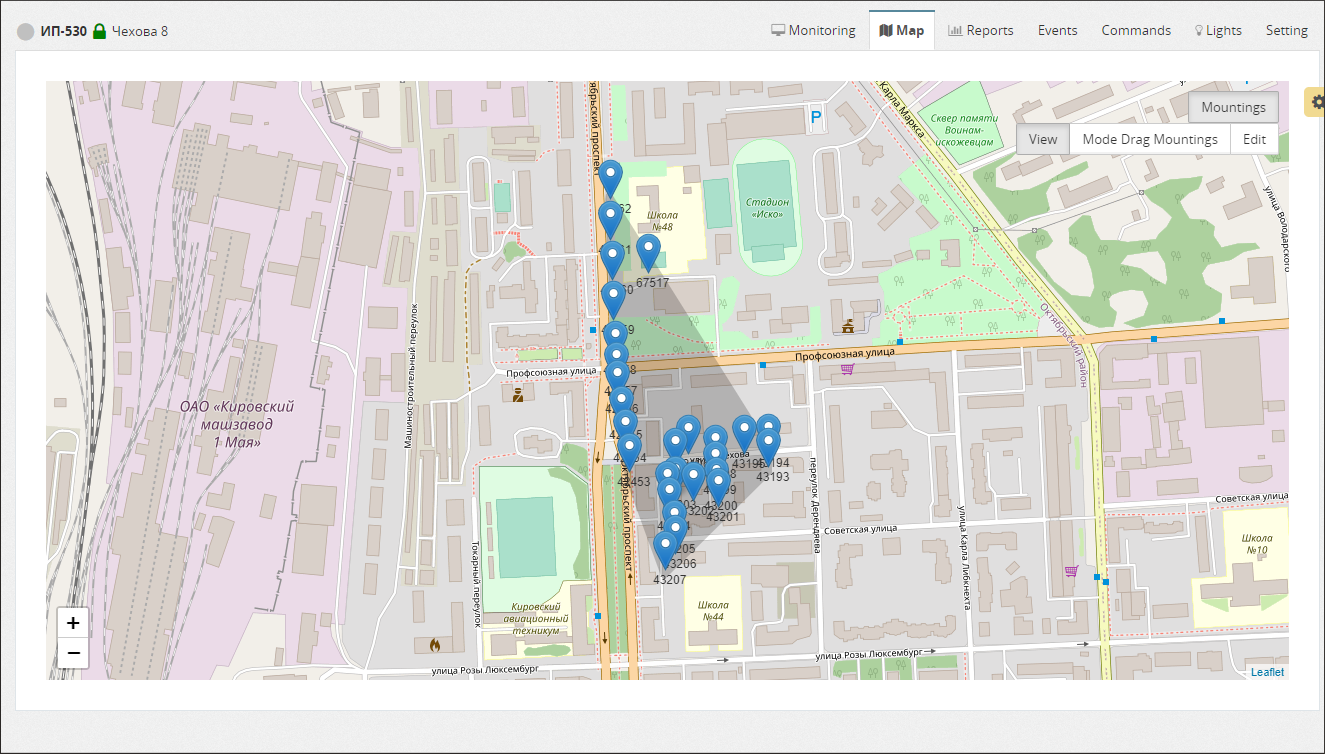

Display of mountings attached to the cabinet.
Actions
The buttons in the right corner of the map are buttons for switching the interface behavior mode: View, Move lighting masts, Edit.
- View mode: when you click on the marker, an information window appears;
- Mode Drag Mountings: it is possible to capture and move the marker on the map with the mouse;
- Edit mode: when you click in the marker, a modal window edit mounting appears

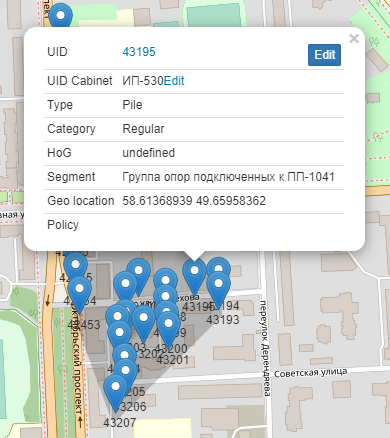

Info window
Reports Tab
Contains interactive (the ability to select the date interval) reports in tabular and graphical form. The list of available reports depends on the project requirements and at least contains:
- Readings - all taken readings of consumption for the period;
- Daily consumption - consumption in a daily context;
- Consumption for the period - the total consumption for the period;
- Instant values - all readings obtained at the current time;
- Instant values archive - all readings received for the period;
- Voltage/Current - readings by voltage and current for the period;

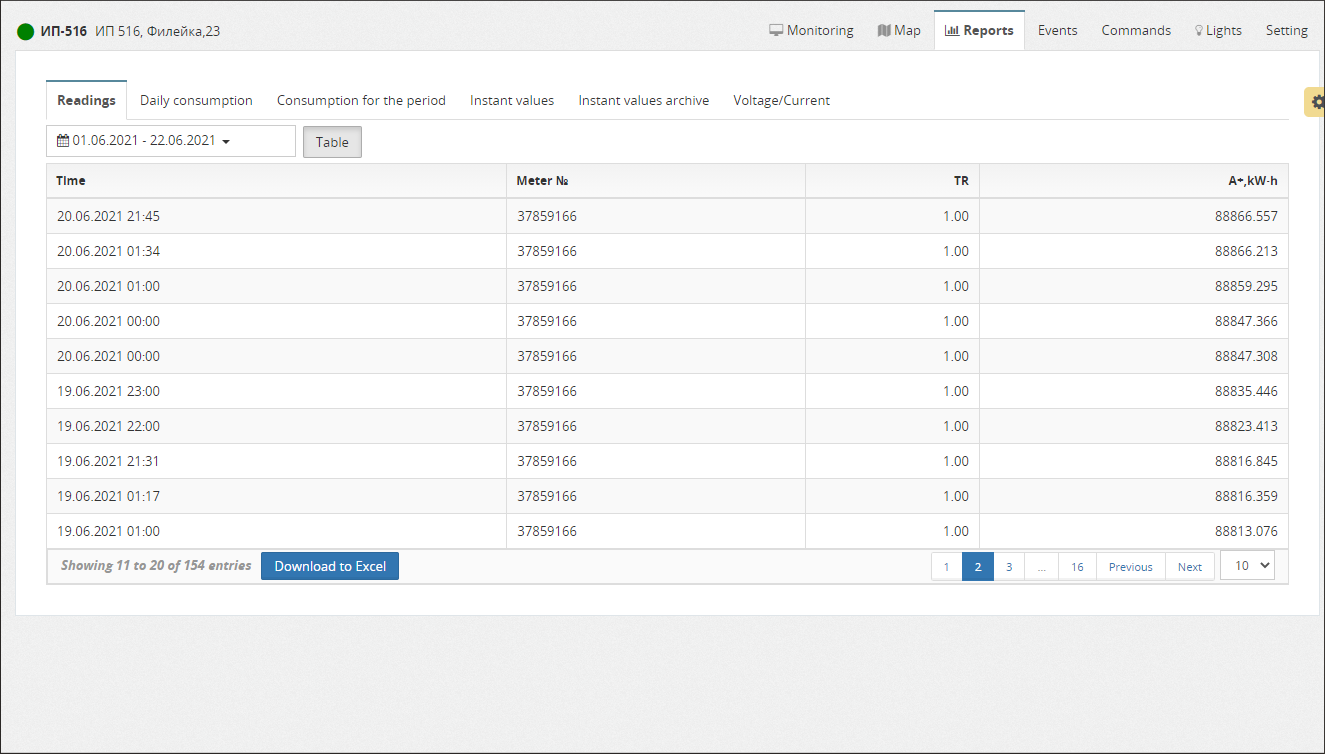

Readings

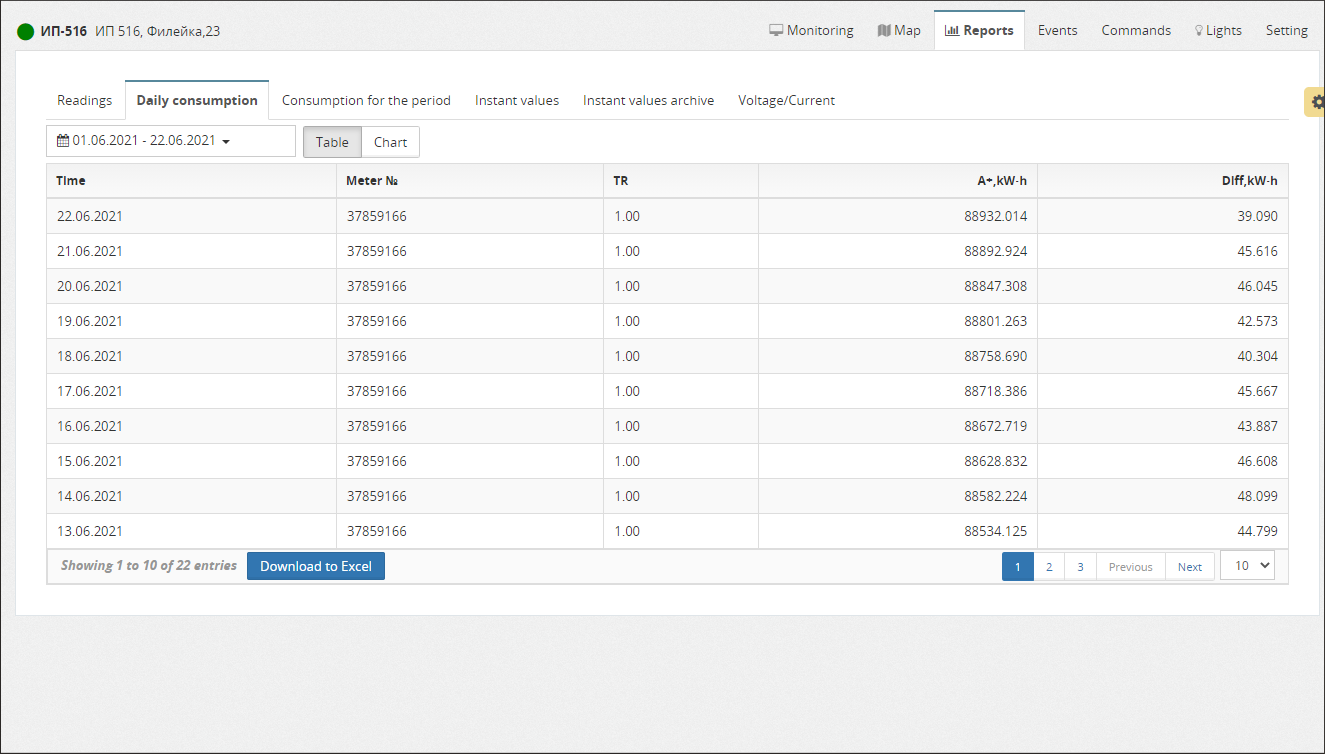

Daily consumption

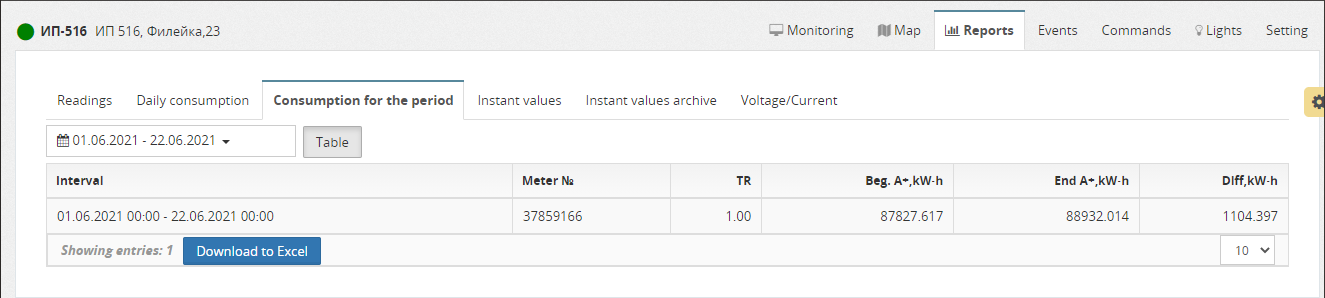

Consumption for the period

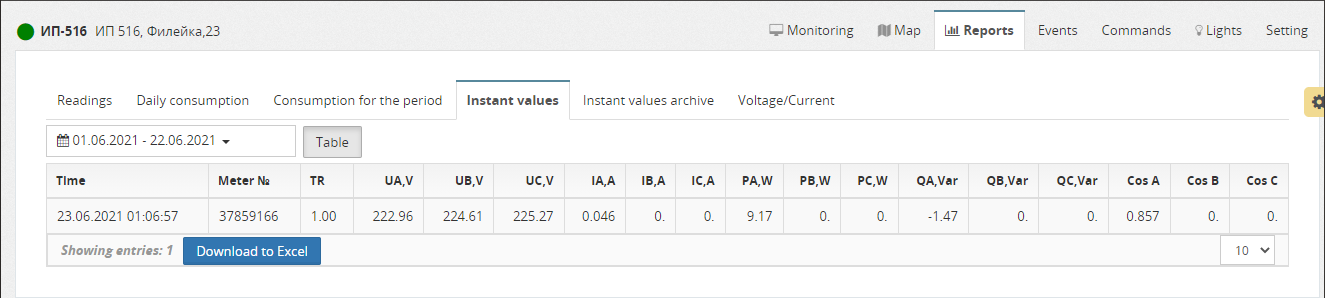

Instant values

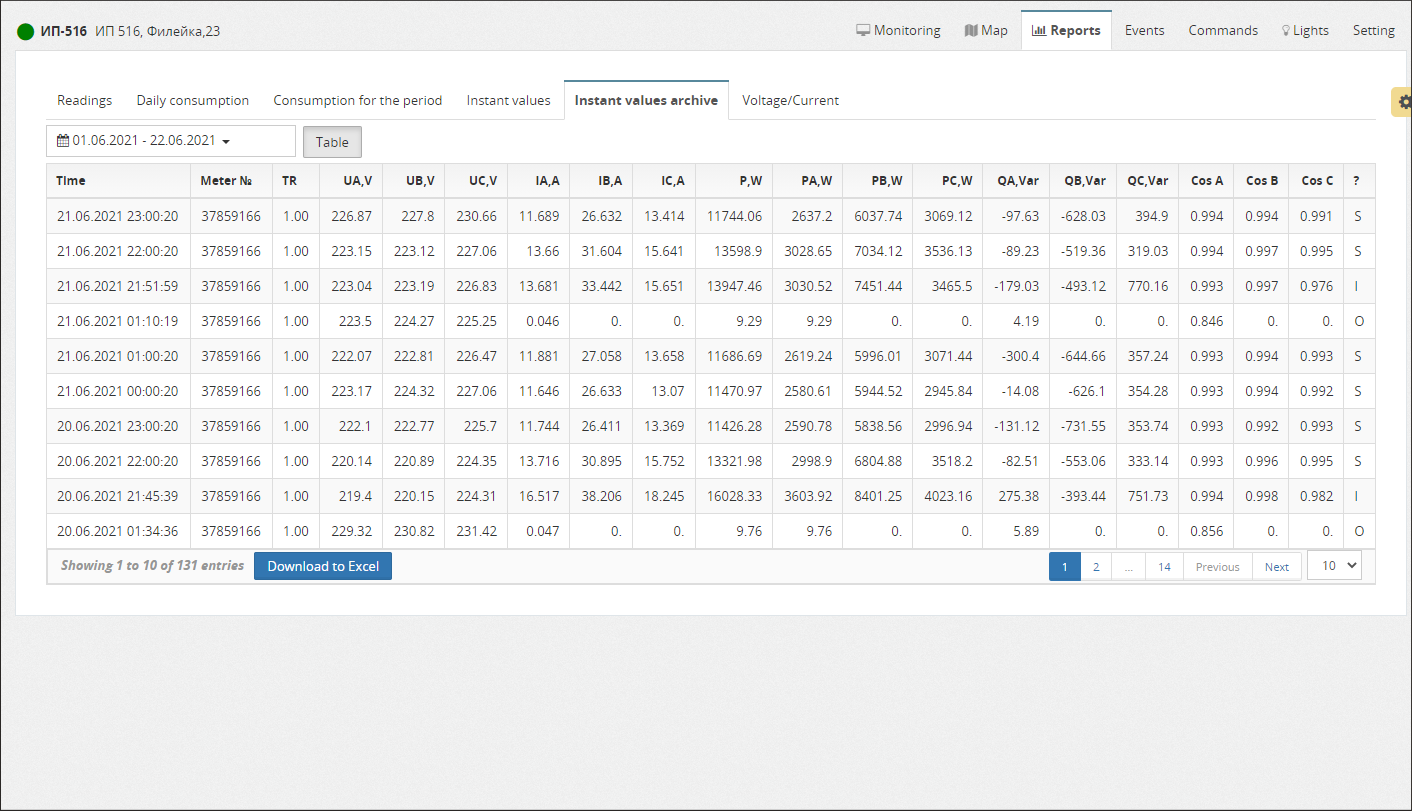

Instant values archive

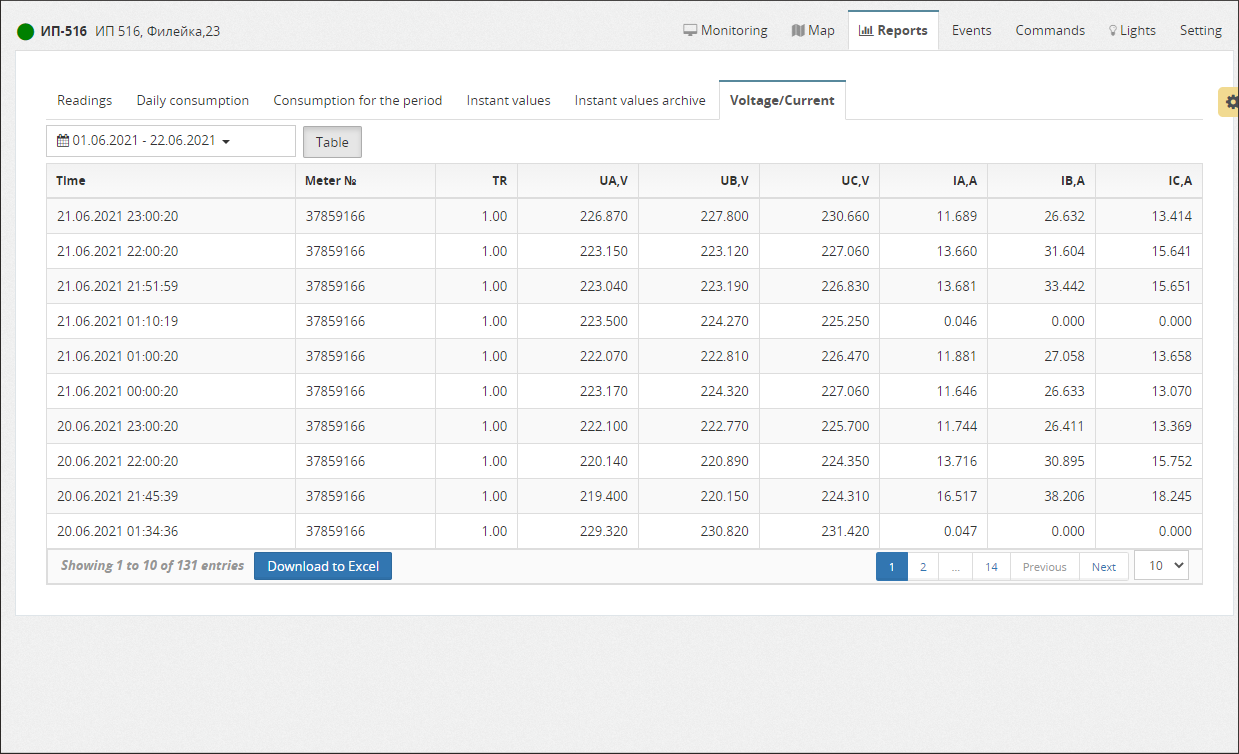

Voltage/Current
Events Tab

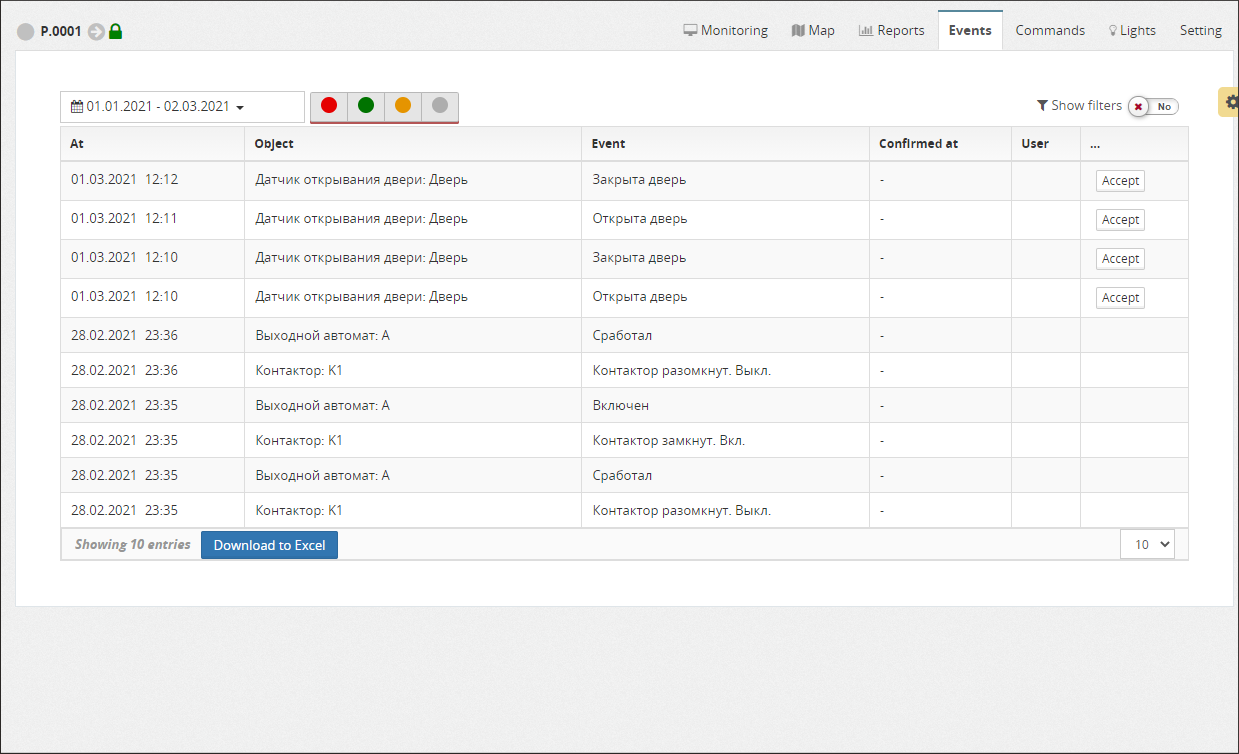

Events related to SLCC and its components are displayed.

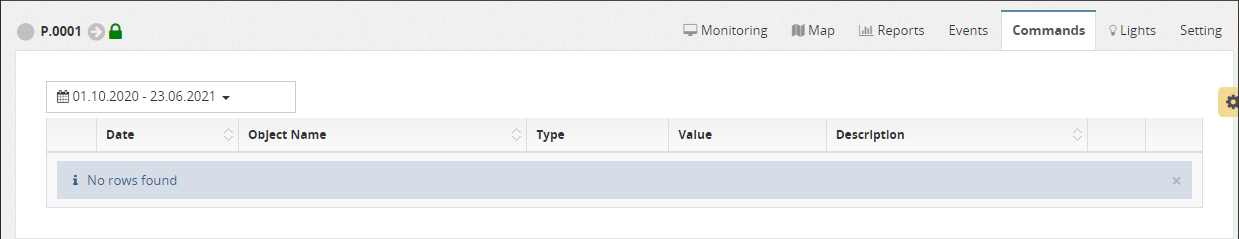

Commands Tab
Commands poisoned to SLCC components are displayed.

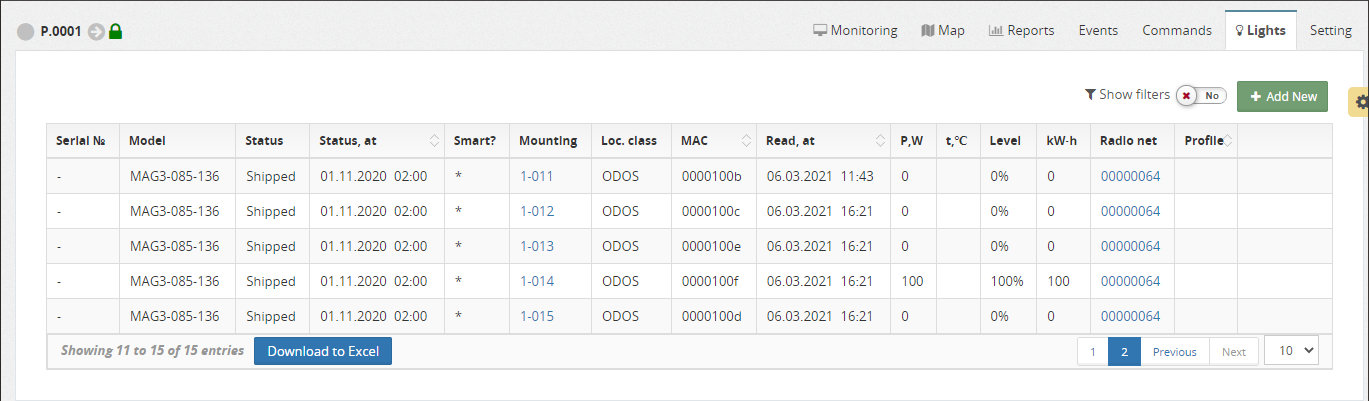

Lights Tab
All (controlled and uncontrolled) luminaires that are powered by SLCC are displayed.
Table columns:
| Name | Description |
|---|---|
| Serial № | Luminaire serial number |
| Model | Luminaire model |
| Status | The current state of the luminaire |
| Status, at | Date of installation of the current state of the luminaire |
| Smart? | Luminaire control capability |
| Mounting | Unique identifier of the luminaire mounting |
| Loc. class | Street category |
| MAC | The unique identifier of the luminaire head |
| Read, at | Last date of exchange of information |
| P, W | Current luminaire power in watts |
| T, C | Temperature in degrees Celsius |
| Level | Dimming installed |
| kW-h | Electricity consumption |
| Radio net | Name of radio communication network |
| Profile | Luminaire profile, set of parameters and operating rules |
Actions
- The creation of a luminaire is performed by clicking on the + Add New button. In more detail, the mechanism for creating a luminaire is described on the luminaires list
Settings Tab
Actions

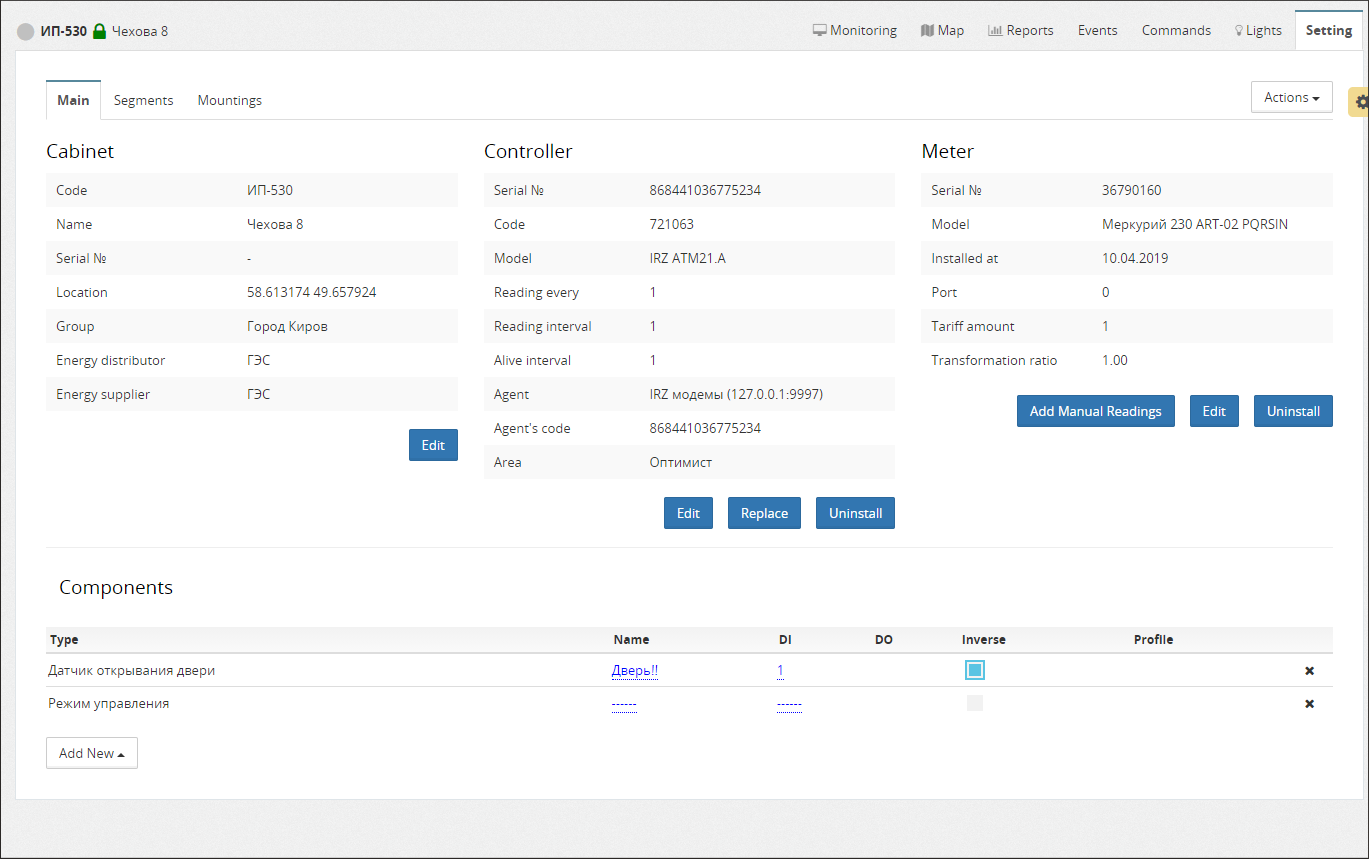

- Editing the characteristics of the SLCC is performed by clicking on the Edit button of the Cabinet block, see [Clarification of SLCC properties] (/docs/instructions/specialist/clarification-properties/cabinet)
- Editing controller parameters is performed by clicking on the Edit button in the Controller section
- The controller is replaced by pressing the button Replace in the Controller section, see Controller replacement
- Dismantling of the controller is performed by pressing the button Uninstall in the Controller section. see Removing the controller
- The meter readings are entered by pressing the button Add Manual readings of the Meter section
- Dismantling the meter is performed by pressing the button Uninstall of the Meter section, see Dismantling the meter
- Management of SLCC components in the Components block see Management of the composition of SLCC components
- Cloning the SLCC by clicking in the menu item Actions->Create like
Controller Management
The mechanism for controlling the controller is detailed in Controllers list
Entering meter readings

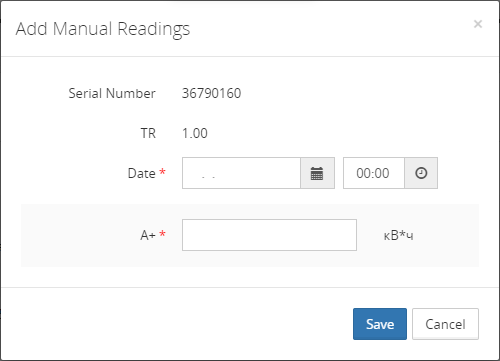

The meter readings are entered in a modal window.
Editing meter
The mechanism for editing meter parameters is detailed on Meters list
Uninstall the meter

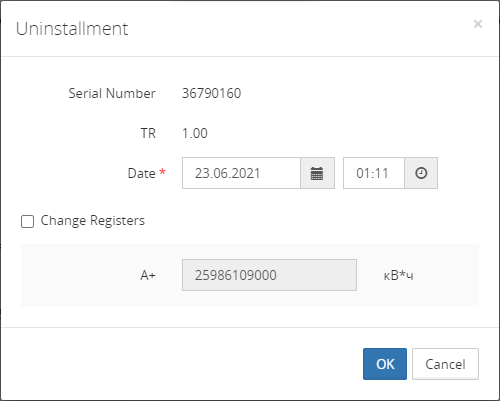

A modal window is used to uninstall of the meter.
Settings Tab, Segments Tab
Segments are discussed in detail in the Segments section
Settings Tab, Mountings Tab
Mountings are discussed in detail in the Mounting page section
Additional actions
In addition to the above actions, actions are also available for which you must click on the Actions button, and a drop-down menu will appear on the screen:
-
Creating a clone of the cabinet is performed by clicking on the Create like menu
-
Activation of the search for smart cabinet luminaires is performed by clicking on the Activate discovery mode menu
-
Removing all connected objects is performed by clicking on the menu Remove all belongs to
- metrics
- heads
- luminaires
- mountings
-
Clarification of the coordinates of the mountings is performed by clicking on the menu Refine coordinates of the mountings
Create like

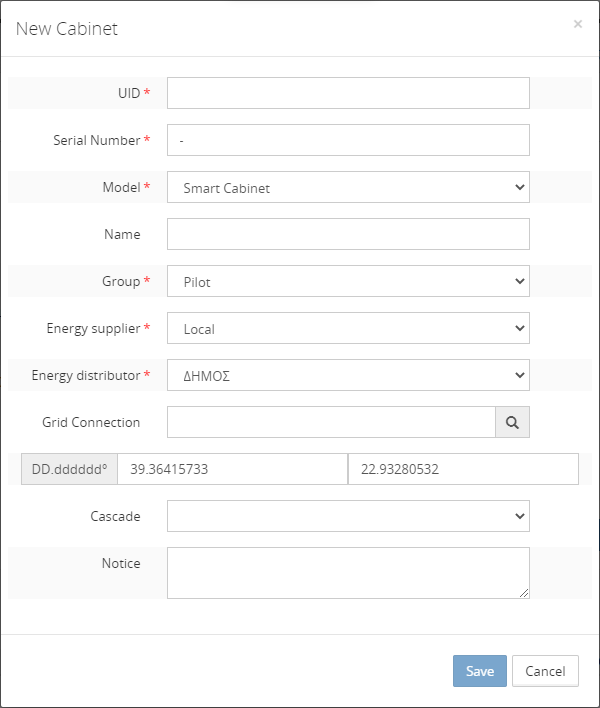

Creating a clone of the cabinet is performed in the modal window for editing the cabinet.
In this case, the parameters of the cabinet in the window are filled with the current values. The purpose of the parameters is described above in the section Creating an account
