Mountings

Mountings List

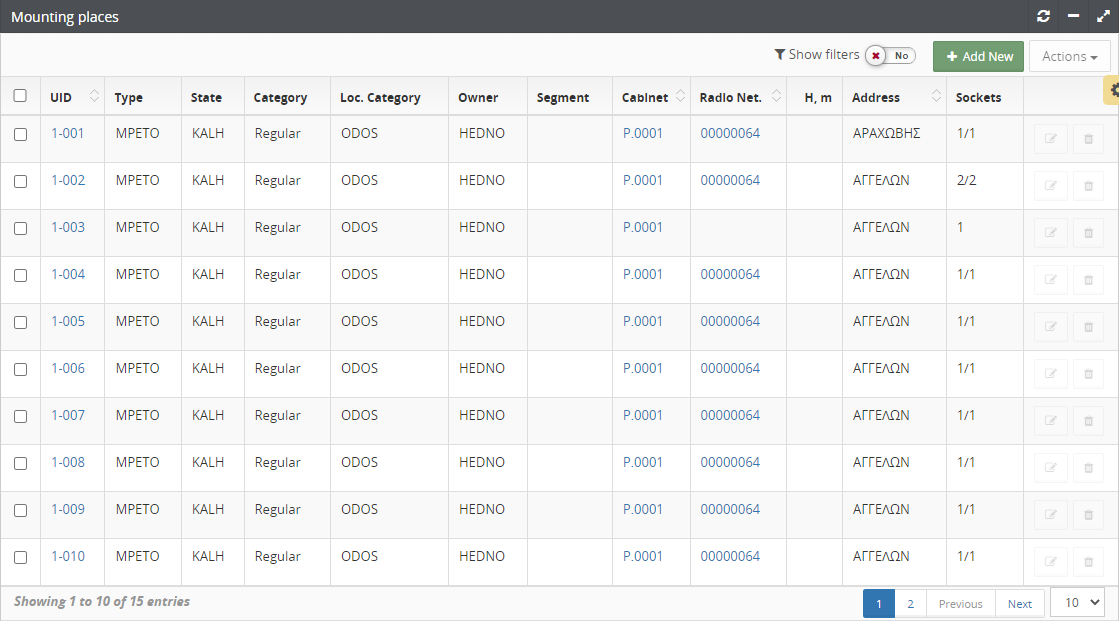

Appearance of the Mountings list with all access rights.

See the GUI concept, paragraph table for how the table view works.

Table columns:

Name	Description
UID	Mounting unique code
Type	Mounting structure
State	Operational condition
Category	Accommodation Features
Loc. Category	Category of the road on which the mounting is installed
Owner	The name of the organization of the owner of the Mounting
Segment	Which [segment] (/ en / docs / introduction / glossary # segment) does the mounting belong to
Cabinet	Pole lighting control object
Radio Net.	The name of the radio network through which communication with the head of the mounting is carried out
H, m	Mounting height in meters
Address	Approximate, postal address of the mounting
Sockets	The maximum number of places for the installation of luminaires

Go to the mounting page;
Go to the Radio network page, which serves the smart luminaire installed on the pole;
Mounting is created by clicking on the +Add New button;
Editing mounting is performed by pressing the button Pencil;
Mounting removal is performed by clicking on the Trash button;
Binding of mountings to the cabinet.

Appearance of the mounting page with all access rights.

Location Mounting on the map;
General information about the mounting. mounting editing call button;
Information about the mounting in accordance with the requirements of the project. For example photos.
One tab for each mounting arm. The title of the bookmark displays:
- Empty socket if the luminaire is not installed;
- Uncontrolled, if an uncontrolled luminaire is installed in the horn;
- MAC address of the BU of the luminaire, if a smart luminaire is installed in the socket and the BU is tied;
- **Not tied BU ** if a smart luminaire is installed in the socket and the BU is not tied.
Button for calling possible actions on the current luminaire;
Button for editing luminaire tags;
Component for choosing the date interval for displaying the metrics of the luminaire;
Buttons for sending dimming commands.
List of metrics in accordance with the date interval specified in (7).

View the characteristics of installed luminaires;
View metrics of functioning of installed smart luminaires;
Editing of luminaire characteristics if the socket is busy;
Installation of the luminaire if the socket is empty;
Dismantling the luminaire if the socket is busy;
Binding head if the socket is busy with a luminaire, it is smart and the head is not linked;
Replacement Head if the socket is busy with a luminaire, it is smart and the BU is tied;
Dismantling the head if the socket is occupied by the luminaire, it is smart and the head is tied;
Editing luminaire tags;
Changing the power level (dimming) of one luminaire is performed by pressing the button Bulb if the luminaire is controlled;

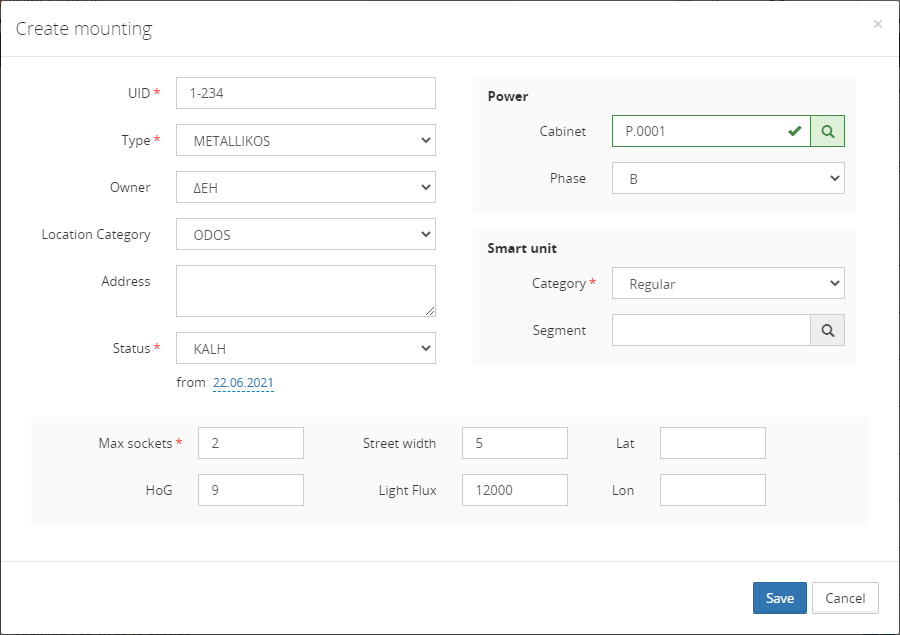

Mounting characteristics are entered in a special modal window.

Name	Description
UID	Mounting unique code, set during registration in the system
Type	Mounting design feature
Owner	The name of the organization of the owner of the Mounting
Location Category	Category of the road on which the mounting is installed
Address	Approximate, postal address of the mounting
Status	Operational state
Cabinet	Item (cabinet) from which the mounting is powered
Phase	Power wire
Category	Designation of the place of installation of the mounting
Segment	Defined limited area, the area in which the mounting is located
Max sockets	The number of arms on the mounting in which the luminaire can be installed
HoG	Mounting height in meters
Street width	Road width in meters
Light Flux	Maximum luminous flux power
Lat	Latitude geographic coordinate
Lon	Geographic coordinate of longitude

The appearance of the modal window for changing the characteristics of a mounting is similar to the creation window (see above).

To remove the mounting, you must first dismantle all the fixtures installed on the mounting.

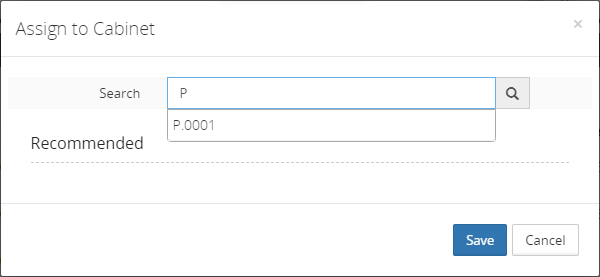

It is performed in the menu item Actions-> Assign to Cabinet, you must first tick the lines of the table.

The search for SLCC is carried out by code and name.

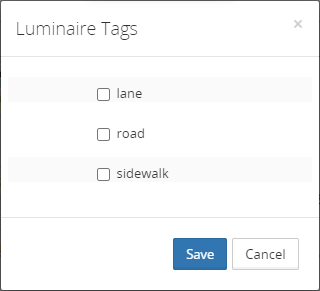

Performed by pressing the button Edit tags
