Lights
Luminaires list
The luminaires list is available in several views:
- All installed - luminaires linked to street lighting poles;
- All installed smart - luminaires tied to street lighting poles and having the BU built-in or external type;
- Stock - luminaires without binding with street lighting poles.
Depending on the type of presentation, different columns are displayed in the table.

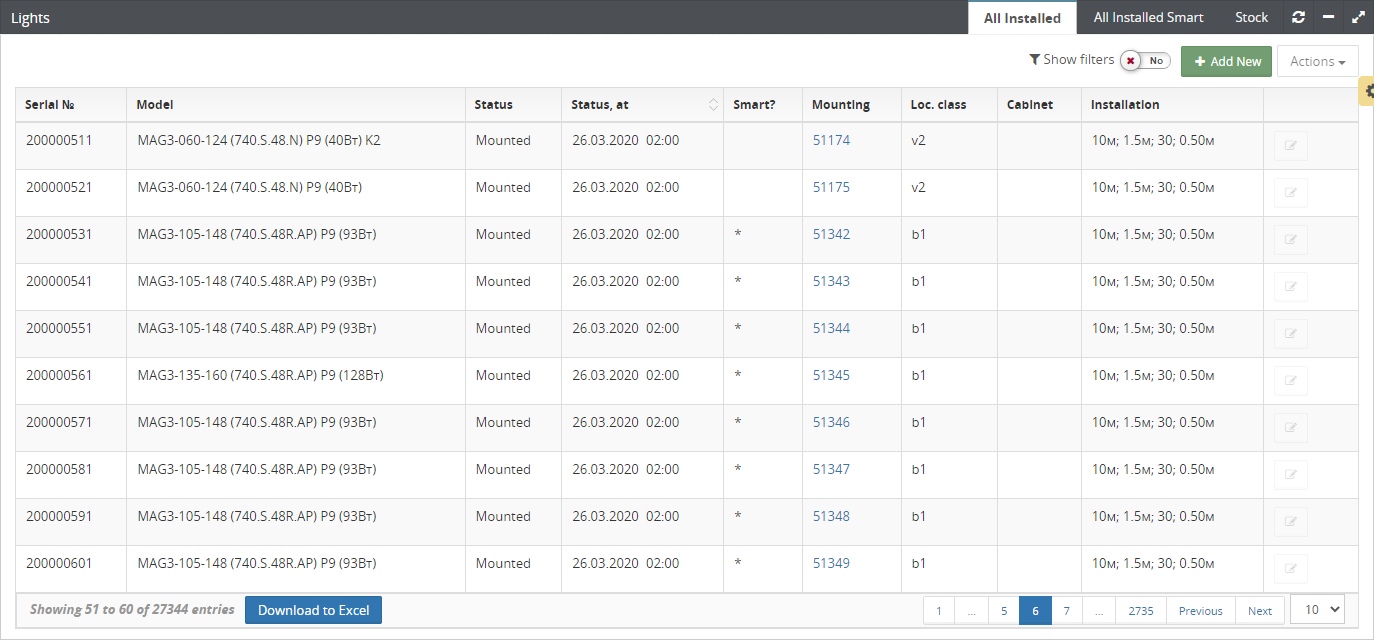

List view All installed with all access rights.
See the GUI concept, paragraph table for how the table view works.
Table columns:
| Name | Description |
|---|---|
| Serial № | Serial number |
| Model | Luminaire model |
| Status | The current state of the luminaire |
| Status, at | Date of installation of the current state of the luminaire |
| Smart? | The sign of “manageability”. Shows the ability to install a head |
| Mounting | The mounting on which the luminaire is installed |
| Loc. class | Street category |
| Cabinet | The luminaire belongs to the SLCC (determined through the mounting) |
| Installation | Characteristics of the fixing point of the luminaire: mounting height; console length; tilt angle; overhang. |

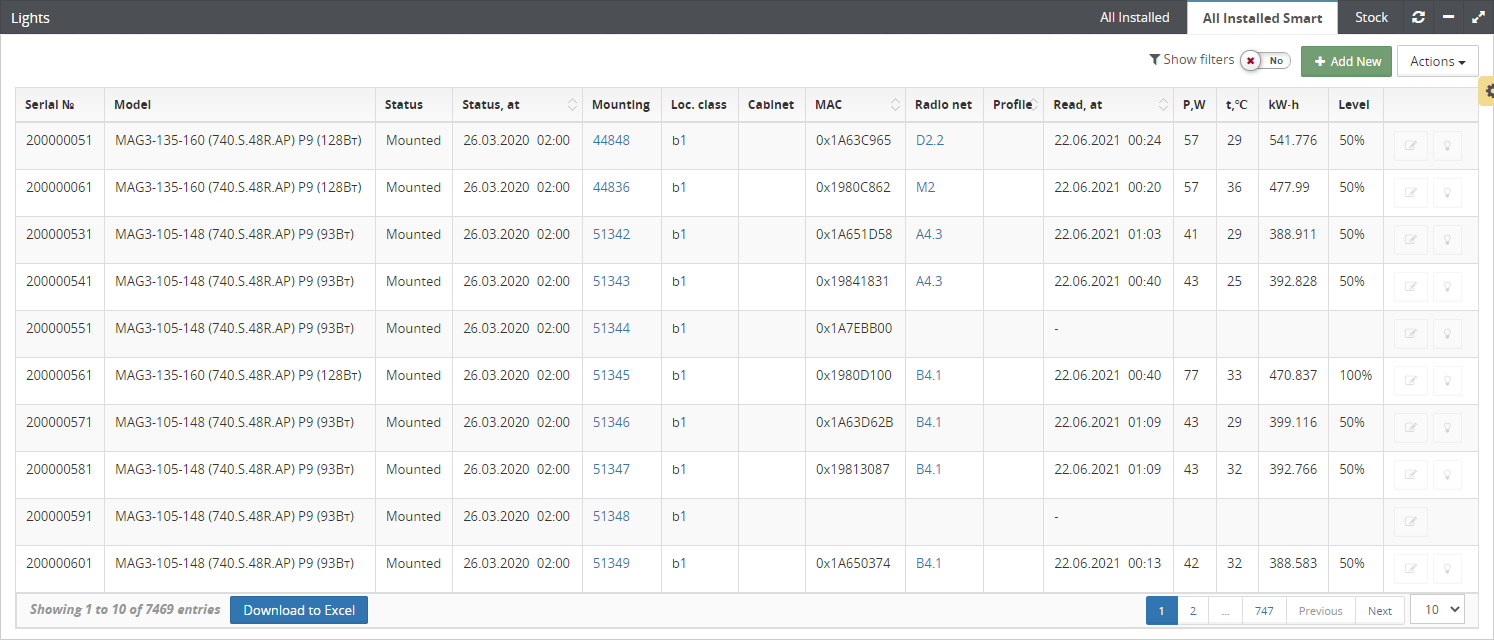

List view All installed smart with all access rights.
See the GUI concept, paragraph table for how a table view works.
Table columns:
| Name | Description |
|---|---|
| Serial № | Serial number |
| Model | luminaire model |
| Status | The current state of the luminaire |
| Status, at | Date of installation of the current state |
| Mounting | The mounting on which the luminaire is installed |
| Loc. class | Street category |
| Cabinet | The luminaire belongs to the SLCC (determined through the mounting) |
| BU | Unique identifier (MAC address) of the head |
| Radio net | Radio network through which the head communicates with the central system |
| Profile | The name of the lighting profile for this luminaire |
| Read, at | Date of receipt of the latest metrics from the luminaire head |
| P, W | Power consumption in watts (last metric) |
| T, C | Temperature in degrees Celsius (last metric) |
| kW-h | Total electricity consumption by the luminaire since the installation of the head |
| Level | Current power level of the luminaire in percent (0% - off, 100% - maximum power) |
Actions
- Go to the luminaire page (the mounting to which the luminaire is attached).
- Creation of a luminaire is performed by clicking on the + Add New button;
- Editing the luminaire is performed by pressing the button Pencil;
Additional actions for luminaires from the list “All installed smart”
- Go to the Radio network page;
- Changing the power level (dimming) of one luminaire is performed by pressing the button Bulb;
- Changing the power level (dimming) of several luminaires is performed in the menu item Actions->Send command;
Luminaire page
In the current version of the system, the luminaire does not have its own page. When you click on the mounting number, the mounting page opens and the tab with the luminaire is automatically selected. See Mounting page

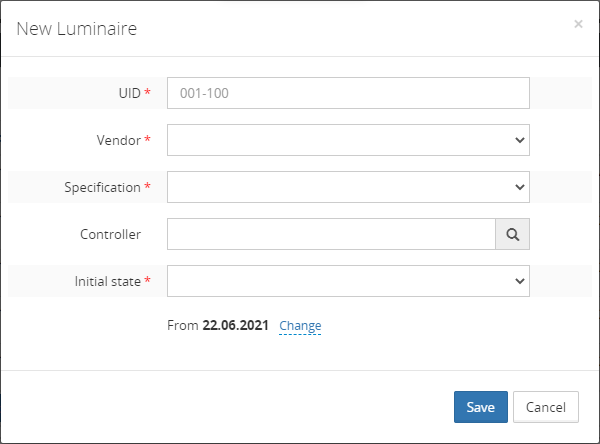

Creating a luminaire
To create a luminaire (several luminaires), you need to specify the basic characteristics of the luminaire. The characteristics are set in a modal window.
| Name | Description |
|---|---|
| UID | Serial number. When entering a numerical interval, where the number of digits is the same, several luminaire with the specified characteristics will be created. |
| Vendor | luminaire manufacturer |
| Specification | Luminaire model. The list is filtered by vendor |
| Controller | |
| Initial state | The status assigned to the luminaire upon creation. |
It is assumed that the luminaires being created are luminaires that are taken to the warehouse and tied to poles later in the installation process.

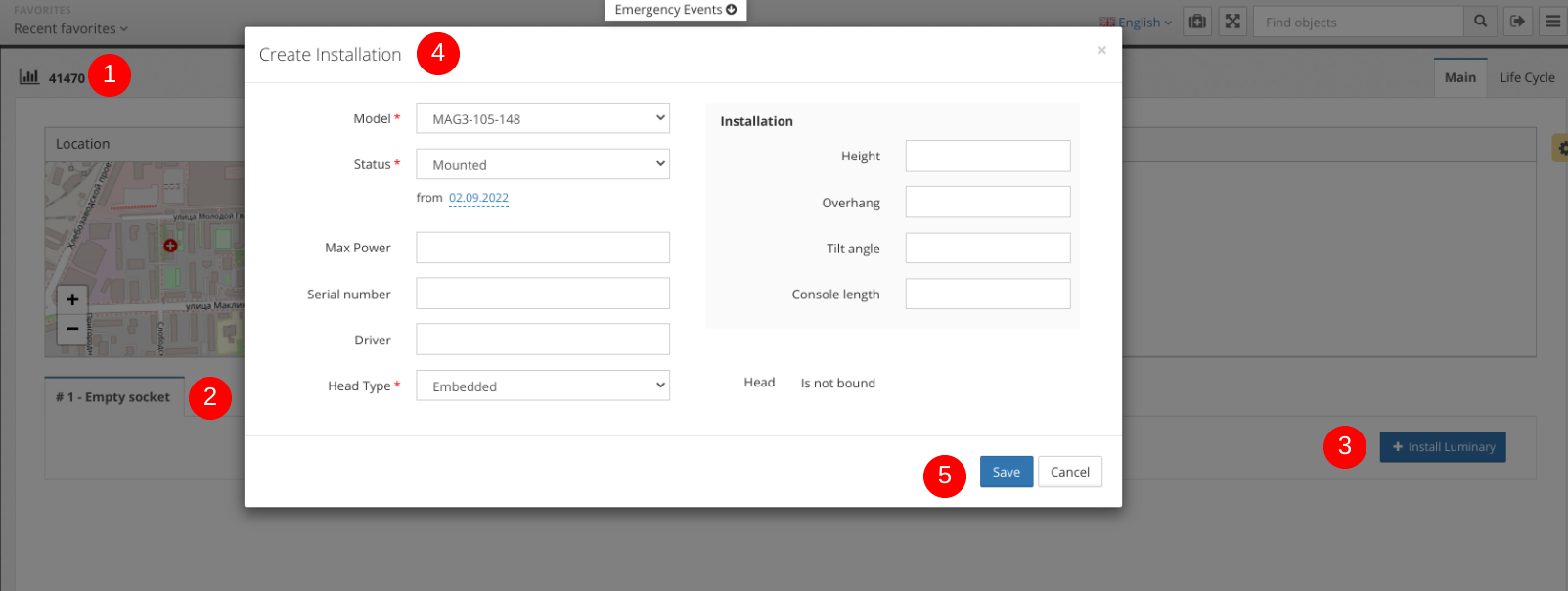

Install a Luminaire to Mounting
- Go to mounting page.
- Find th section with tabs representing socket. One socket = One tab. Empty socket informs, that there is no luminaire installed.
- Click button Install Luminaire
- Enter at least all mandatory attributes.
- Click button Save
The tab section will be refreshed with installed luminaire characters.

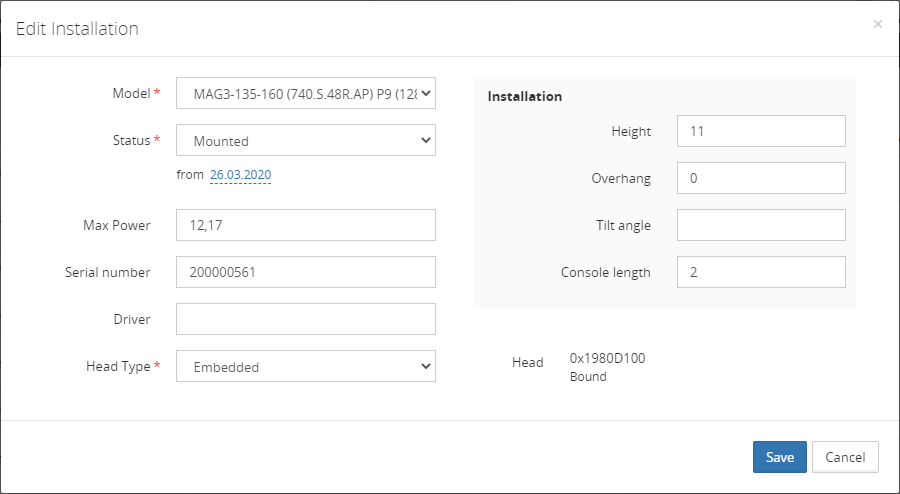

Editing a luminaire
The characteristics of the luminaire are changed in a special modal window.
In the modal window for editing the luminaire, you can change not only the own characteristics of the luminaire, but also the installation parameters, therefore the title of the window is Edit light point.
| Name | Description |
|---|---|
| Model | luminaire model |
| Status | luminaire state |
| Max Power | The value is set in watts, if the maximum power of this luminaire is limited individually at the driver level. |
| Serial number | Unique number of the luminaire |
| Driver | Driver name or serial number, if available. |
| Head Type | Head characteristics |
| Height | Installation height |
| Overhang | Luminaire overhang |
| Tilt angle | Tilt angle |
| Console length | Console length |
Changing the power level of the luminaire
Dimming (setting the power level) of an individual luminaire is carried out in the pop-up menu where the permissible power levels for this luminaire model are listed.
When you click on a menu item, a command for setting the current power level is sent to the head.
Details on the page Command Execution
This function is only used to test the performance of a single luminaire. Luminaires are expected to change their wattage automatically according to the lighting policy and profiles.
Changing the power level of multiple luminaires

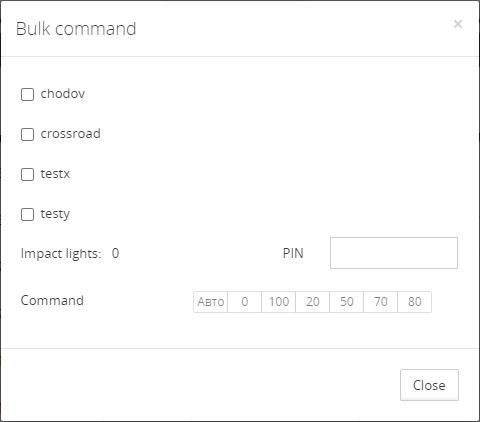

Dimming (setting the power level) of several luminaires is carried out in a modal window.
-
By checking the boxes opposite marks, the number of fixtures is counted to which the dimming command will be sent. When multiple labels are selected, the “logical AND” rule works.
-
The PIN field is required to protect against unauthorized command sending.
-
When you click on the dimming level button, commands for setting the current power level are sent to the head of the luminaires that satisfy the selected labels. The modal window is closed.
