Controllers

Controllers list

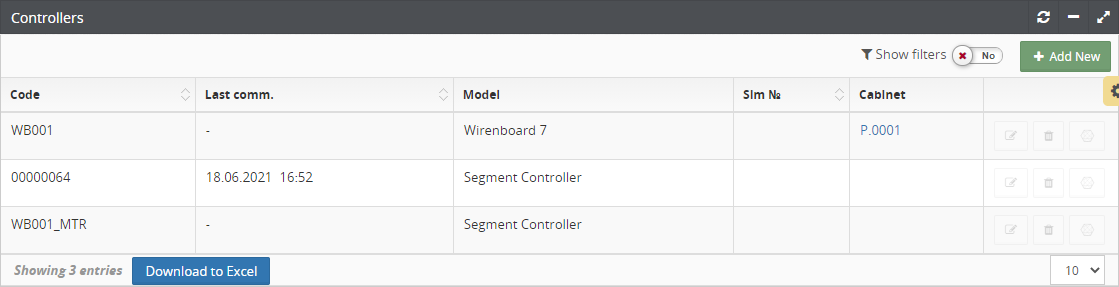

Appearance of the Controllers list with all access rights.

See the GUI concept, paragraph table for how the table view works.

Table columns:

Name	Description
Code	Unique controller number
Last comm.	Date of the last communication session
Model	Factory model of the controller
SIM №	SIM card number of establishing connection
Cabinet	Cabinet to which the controller is attached

Creating a controller is performed by clicking on the + Add New button;
Editing the controller is performed by pressing the button Pencil;
Binding of the controller to the cabinet is performed by pressing the button Cabinet;
Go to the page SLCC page by clicking in the selected Cabinet;
Deleting a controller is performed by clicking on the Trash button;

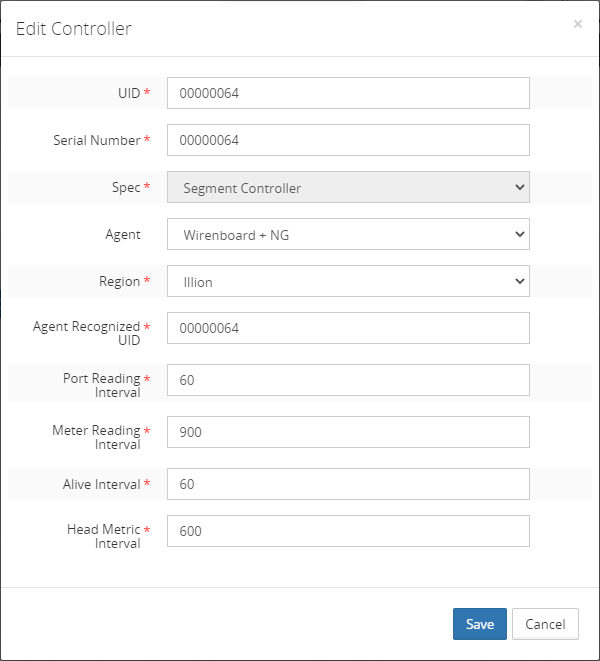

The appearance of the modal window for entering controller characteristics is similar to the edit window (see below).

The characteristics of the controller are changed in the modal window:

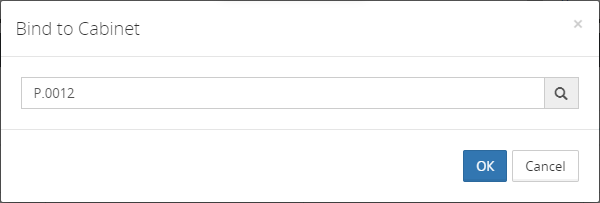

Appearance of the modal window for selecting the cabinet for binding the controller.
