Segments

Segments list

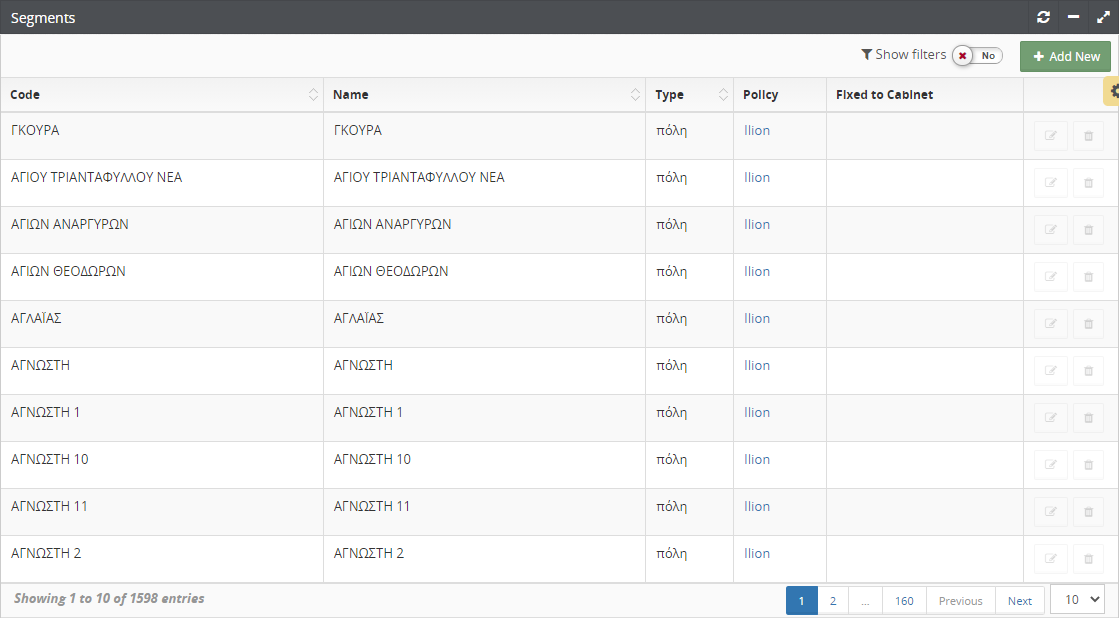

Appearance of the Segments list with all access rights.

See how the table view works in the section GUI concept, paragraph table.

Table columns:

Name Description
Code Unique segment code
Name Name
Type Characteristics of the distribution of a segment on the ground
Policy Lighting policy assigned to this segment
Fixed to Cabinet The name of the cabinet assigned to the segment

Actions

  • The transition to the lighting policy page is performed by clicking in the selected Policy
  • The transition to the cabinet page is performed by clicking in the selected Cabinet
  • Create a segment is performed by clicking on the + Add New button
  • Editing a segment is performed by pressing the button Pencil
  • Deleting a segment is performed by clicking on the button Trash

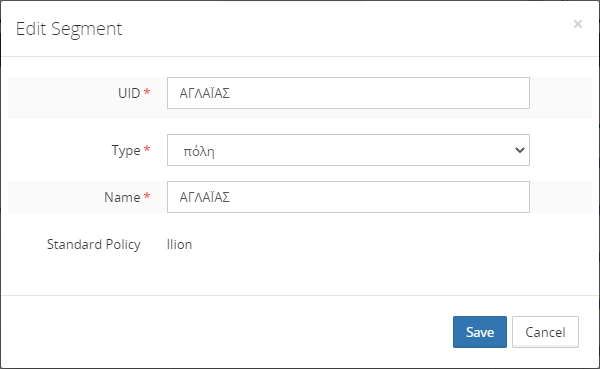

Create / Edit Segment

Segment characteristics are set in a modal window.

Name Description
UID Unique segment code
Type Characteristics of the distribution of a segment on the ground
Name Segment name
Standart Policy Lighting policy assigned to this segment
