Radio gateways

Radio gateways list

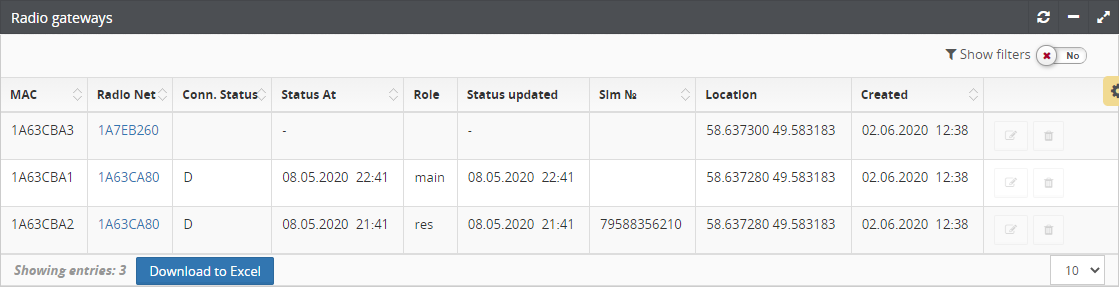

Appearance of the Radio gateways list with all access rights.

See the GUI concept, paragraph table for how the table view works.

Table columns:

Name Description
MAC Unique network code of the radio gateway
Radio Net The name of the radio network, which includes the radio gateway
Conn. Status The current state of the connection between the central system and the radio gateway: D - Disconnected, C - Connected
Status At Connection status change date (transition from D to C or from C to D)
Role The role of the radio gateway within the radio network: main - main, res - standby
Status updated Date of the last confirmation of the state of connection with the radio gateway
Sim № SIM card number built into the radio gateway
Location Geographic coordinates of the location of the radio gateway
Created Date of creation (automatic registration) of the radio gateway in the system

Actions

  • Go to Radio network page;
  • Editing the radio gateway is done by clicking on the Pencil icon;
  • Removing the radio gateway is performed by clicking on the icon Trash.

Radio gateways are automatically registered with the system as they are discovered in the radio network. Therefore, pay attention to the detailed description of the actions on the page updating the characteristics of the radio gateway.

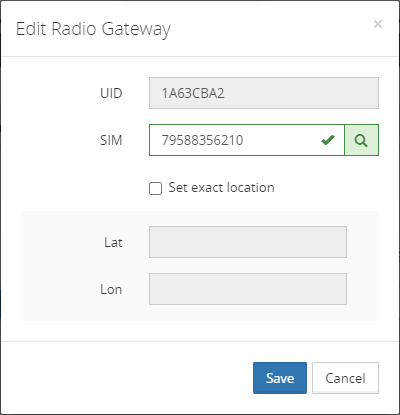

Edit radio gateway

The characteristics of the radio gateway are changed in the modal window:
