Radio networks

Radio networks List

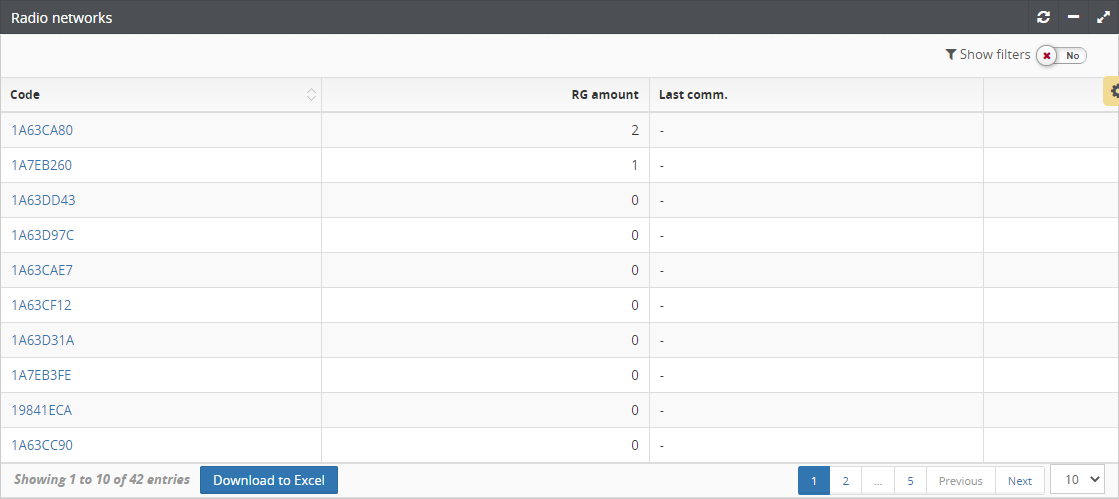

Appearance of the Radio networks list with all access rights.

See the GUI concept, paragraph table for how the table view works.

Table columns:

Name Description
Code Unique identifier for the radio network. Set by an engineer when designing a radio network.
RG amount The number of operating radio gateways.
Last comm. Date and time of the last successful exchange with luminaires included in this radio network.

Actions

  • Go to the radio network page

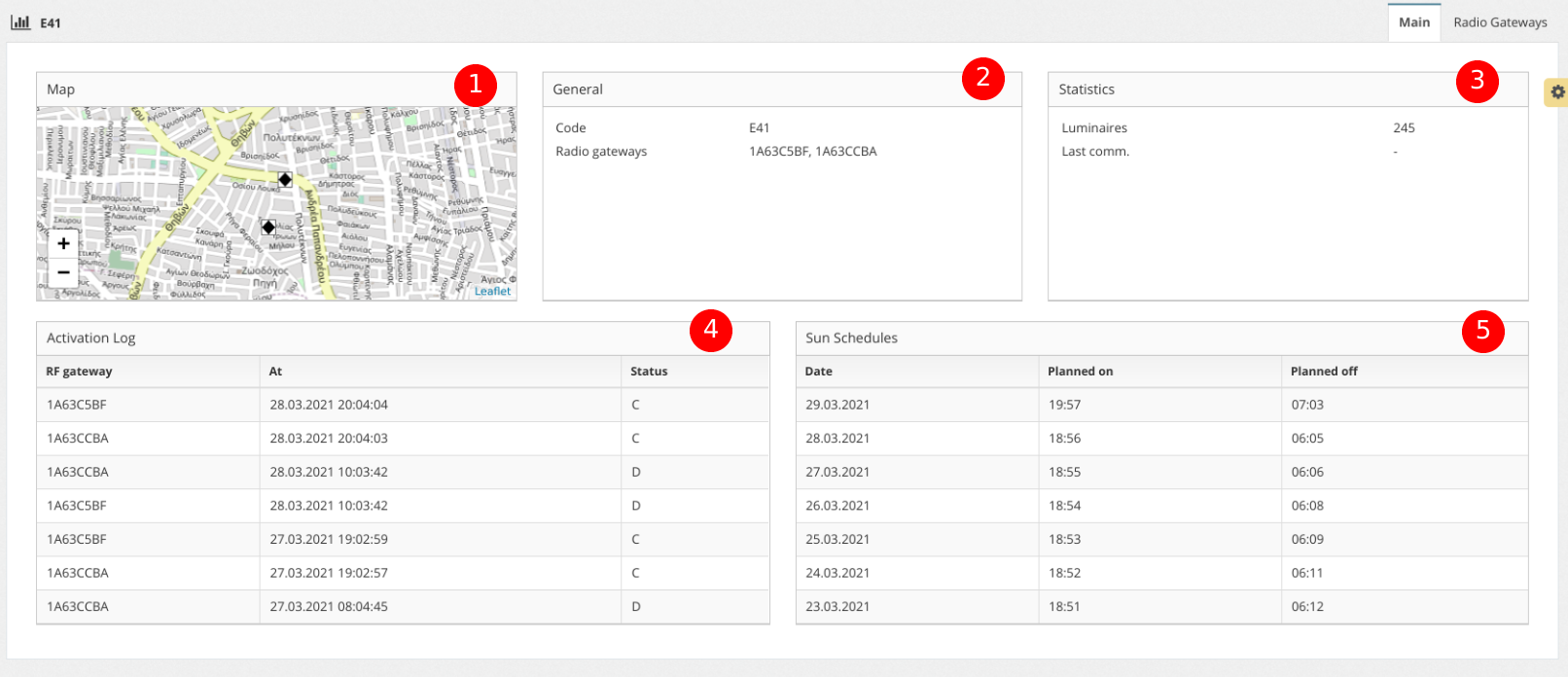

Radio network page

Legend:

  1. Location of radio gateways on the map.
  2. General information about the radio network.
  3. Radio network statistics.
  4. Date and time of the last activation / deactivation of radio gateways included in the radio network.
    • С - connect (connection);
    • D - disconnect.
  5. Scheduled time for switching on and off according to the approved calendar.

Actions

  • Controlling radio gateways when switching to the Radio gateways tab
Radio Gateway Management

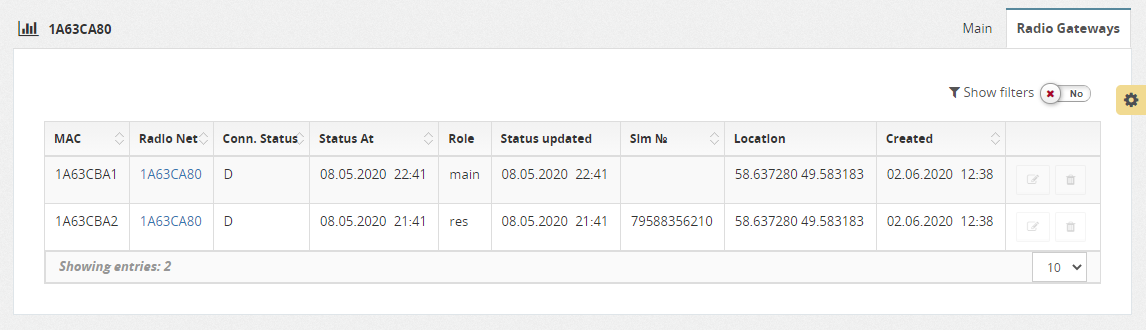

The Radio gateways tab displays a list of radio gateways that are the basis of this radio network. The user has access to actions:

  • Edit radio gateway parameters;
  • Remove radio gateway.

A detailed description of actions on radio gateways is described in updating radio gateway characteristics.
