Heads

Heads List

The heads list is available in several views:

  • All installed - heads tied to luminaires;
  • Stock - heads not tied to luminaires (not yet installed or dismantled).

Depending on the type of presentation, different columns are displayed in the table.

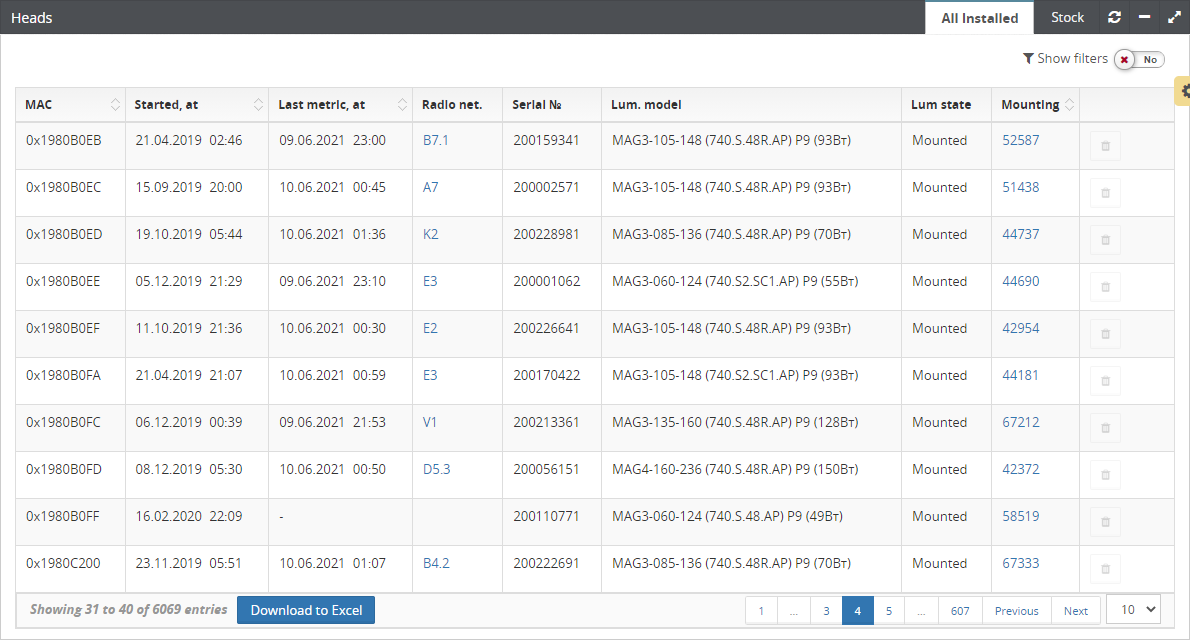

List view All installed with all access rights.

See the GUI concept, paragraph table for how the table view works.

Table columns:

Name Description
MAC MAC address of the BU
Started, at Date of detection of the head in the radio network or the date of loading the head into the system
Last metric, at Date of receipt of the last metric from the BU
Radio net. The name of the radio network in which the BU is served
Serial № Serial number of the luminaire to which the head is linked
Lum. model Luminaire model
Lum state
Mounting Unique identifier of the mounting on which the head luminaire is installed

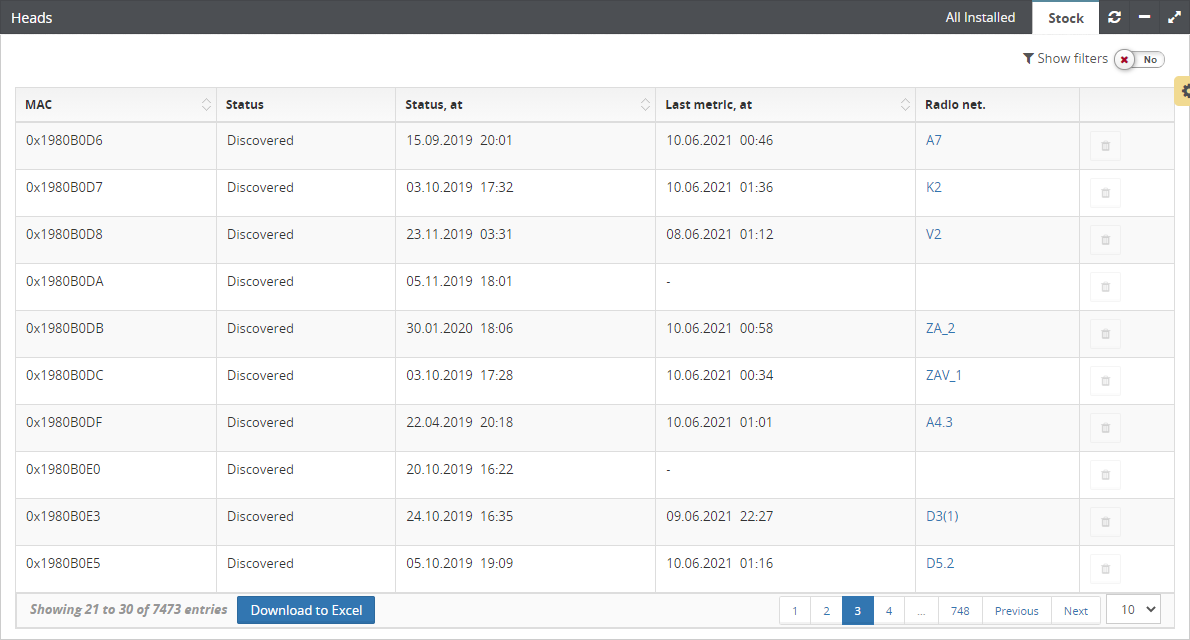

The appearance of the Stock list with all access rights.

See the GUI concept, paragraph table for how the table view works.

Table columns:

Name Description
MAC MAC address of the BU
Status Current status
Status, at Date of installation of the current status
Last metric, at Date of receipt of the latest metric
Radio net. Name of the radio network in which the head was served

Actions

  • Go to the radio network page by clicking on the selected Radio network, see Radio network page;
  • Go to the mounting page by clicking on the selected Mounting, see Mounting page;
  • Head is deleted by clicking on the Trash button

Notes

The appearance of a head in the system is possible in 2 ways:

  • loading from a third-party system;
  • when detected in the radio network
