Meters
Meters list

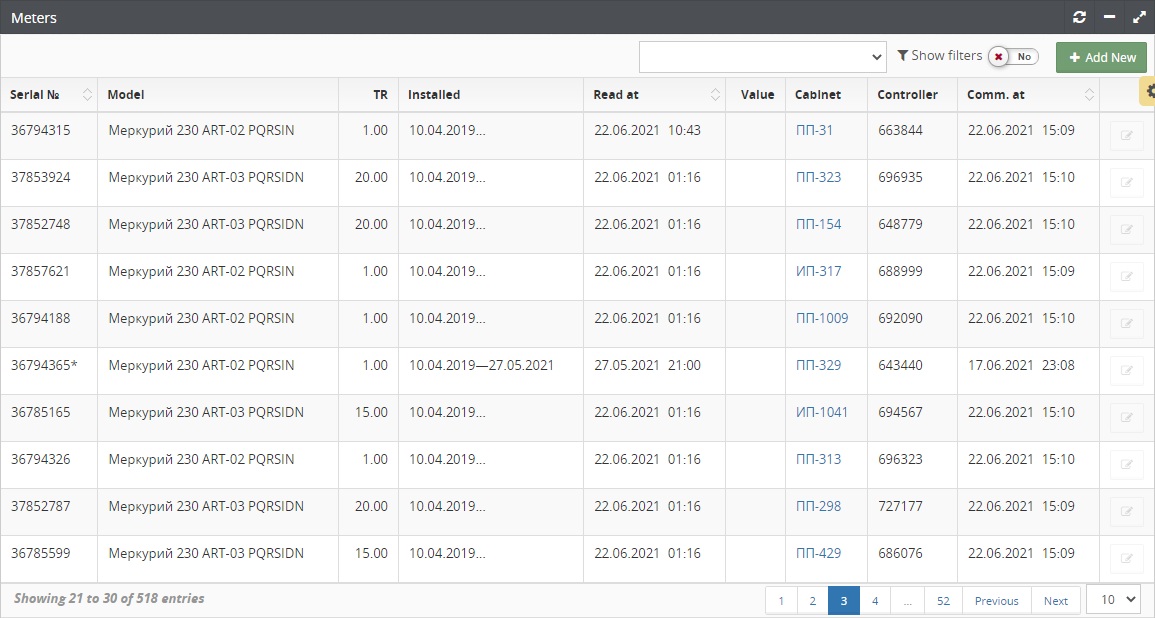

Appearance of the Meters list with all access rights.
See the GUI concept, paragraph table for how the table view works.
Table columns:
| Name | Description |
|---|---|
| Serial № | Unique serial number of the meter |
| Model | Meter model |
| TR | Current transformation ratio |
| Installed | Date of installation of the meter in SLCC |
| Read at | Time of the last successful reading of the meter readings |
| Value | The value of the meter register from the last successful reading of the readings in accordance with the selected register type in the table header. |
| Cabinet | SLCC, in which the meter is installed |
| Controller | SLCC controller to which the meter is connected |
| Comm. at | Time of the last communication check between the central system and the SLCC controller |
Actions
-
Go to the SLCC page in which the meter is installed;
-
The meter is created by clicking on the + Add New button;
-
Editing the meter is performed by pressing the button Pencil;
Create meter

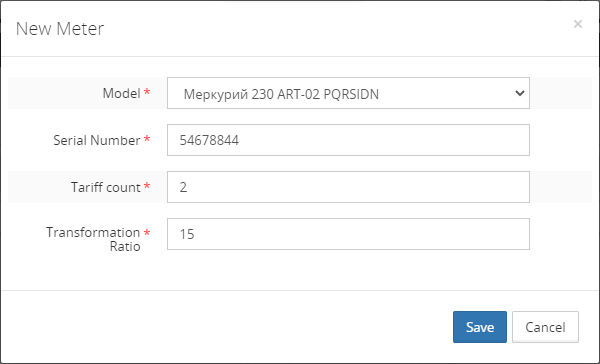

The characteristics of the new meter are set in the modal window:
If the electricity meter is connected directly (without using a current transformer), the transformation ratio must be equal to one.
It is assumed that the created meters are meters that are taken to the warehouse and linked to SLCC later, during the installation process.
Editing meter
The appearance of the modal window for changing the meter characteristics is similar to the creation window (see above).
Delete meter
To remove the meter, you must first [dismantle](/docs/instructions/specialist/device-replacement/meter/#dismantling the meter) the meter from the office.
