SLCC Properties

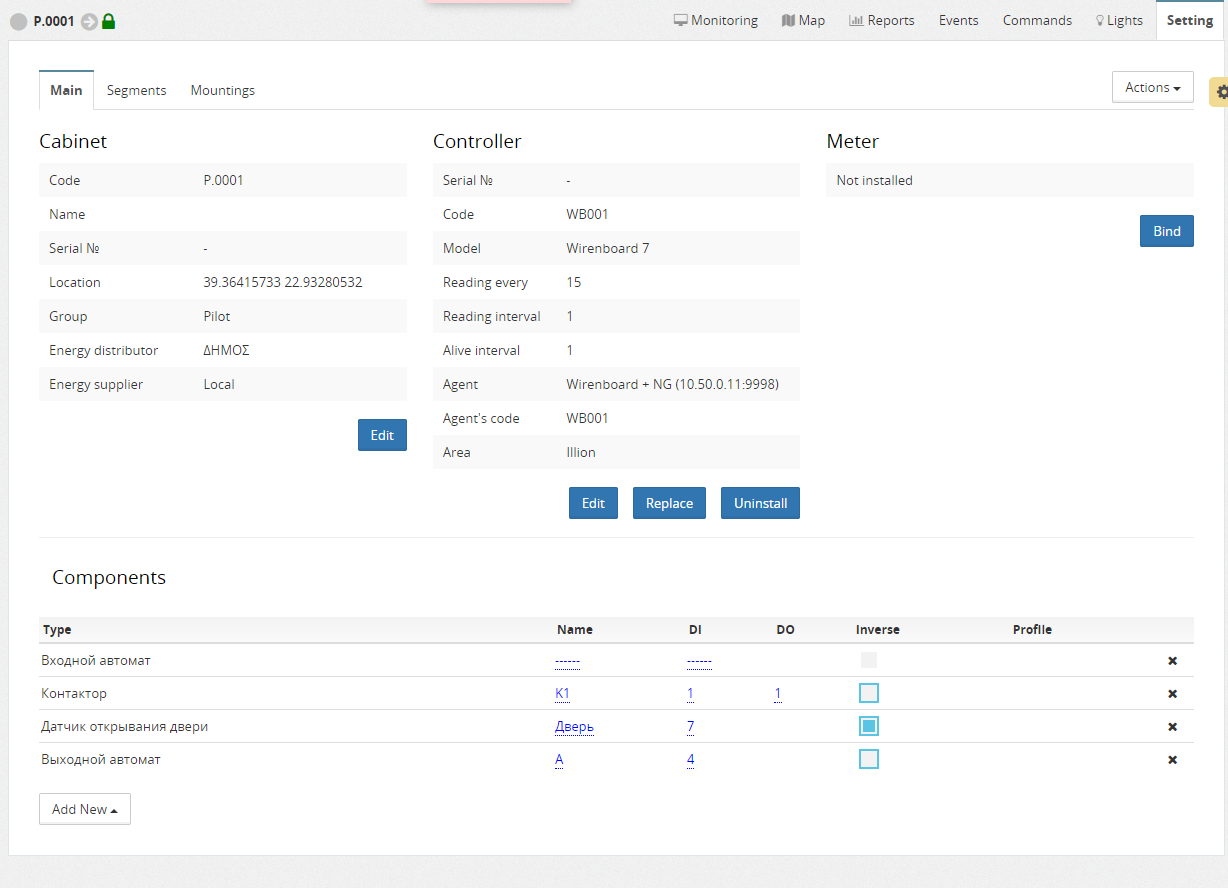

SLCC characteristics are configured on the SLCC page, tab Settings -> Main
The window is divided into four blocks:
- own characteristics of SLCC;
- characteristics of the installed SLCC controller;
- characteristics of the installed electricity meter;
- a list of SLCC components and their connection with the digital ports of the controller.
Blocks Controller, Meter, Components can be empty if there are no device data.
Entering SLCC Properties

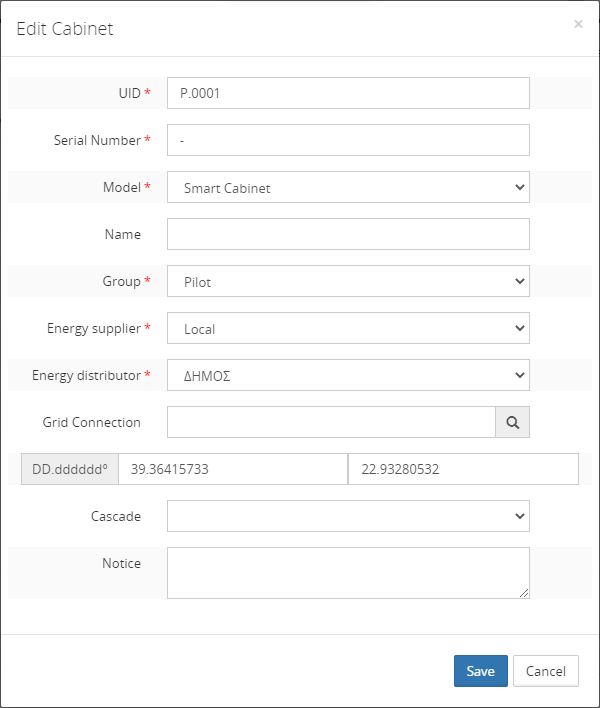

Executed in a modal window when creating or editing SLCC.
| Name | Description |
|---|---|
| UID | Unique account code. Used to display in dependent forms and tables. The number at the end is used for sorting. For example PP-9 and IP-10 will be sorted by the numbers at the end: first 9, then 10. |
| Serial number | Serial number SLCC |
| Model | SLCC model |
| Name | Name or alternative code SLCC |
| Group | The name of the group of offices united on a territorial basis |
| Energy supplier | Power supply company |
| Energy distributor | Network company to which SLCC is connected |
| Grid connection | Transformer substation from which SLCC is powered |
| DD.dddddd | Latitude and Longitude of location |
| Cascade | The name of the cascade, if SLCC enters the cascade as a slave |
| Notice |
Linking Components to SLCC
See instructions for installation and replacement of the SLCC controller, as well as instructions for installation and replacement electricity meter.
Managing the composition of SLCC components
To successfully add components, you need a controller bound to SLCC. The controller’s digital input and output ports are used to communicate with components.

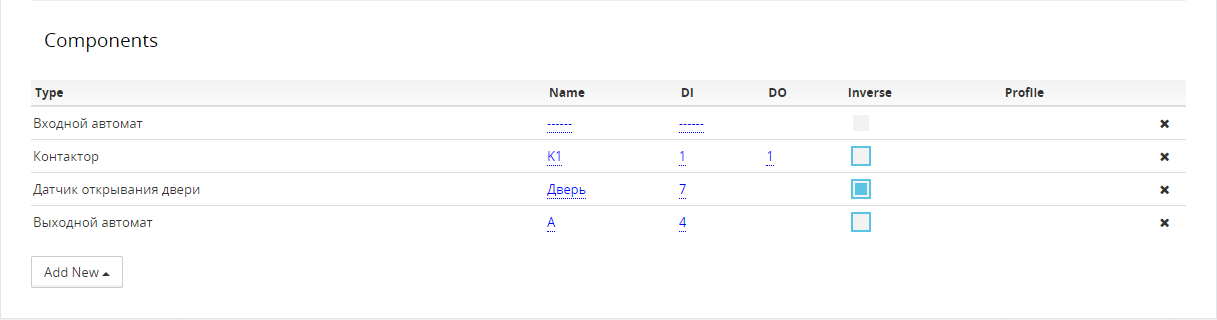

Appearance of the list of SLCC components with all access rights:
Table columns:
| Name | Description |
|---|---|
| Type | Component type |
| Name | Component name that will be displayed for components of the type: outgoing circuit breaker, contactor. |
| DI | Number of the digital input of the controller to which the component is connected |
| DO | Number of the digital output of the controller to which the component is connected (in case the component is remotely controlled - for example, a contactor) |
| Inverse | Indication of the need to invert the value read from a digital input before interpreting the value |
| Profile | Lighting profile when using semistors and smooth power supply to the luminaires |
Adding components is done by clicking on the Add New button

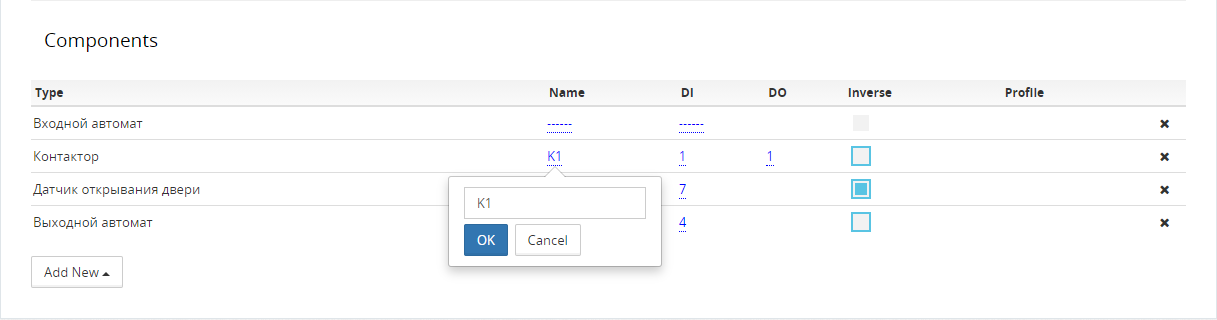

Editing of component properties is done by clicking on the link.
A component can be removed by clicking the Cross in the right part of the line.
