SLCC On/Off Time
Setting SLCC on/off time (in fact contact switch on/off time) is multi-step process.
Connection between SLCC and annual schedule:
Tasks
- Change ON/OFF time of the most of SLCCs.
- A single SLCC shall use different ON/OFF schedule.
Change ON/OFF Time of the Most of SLCCs
Step 1: Change Schedule

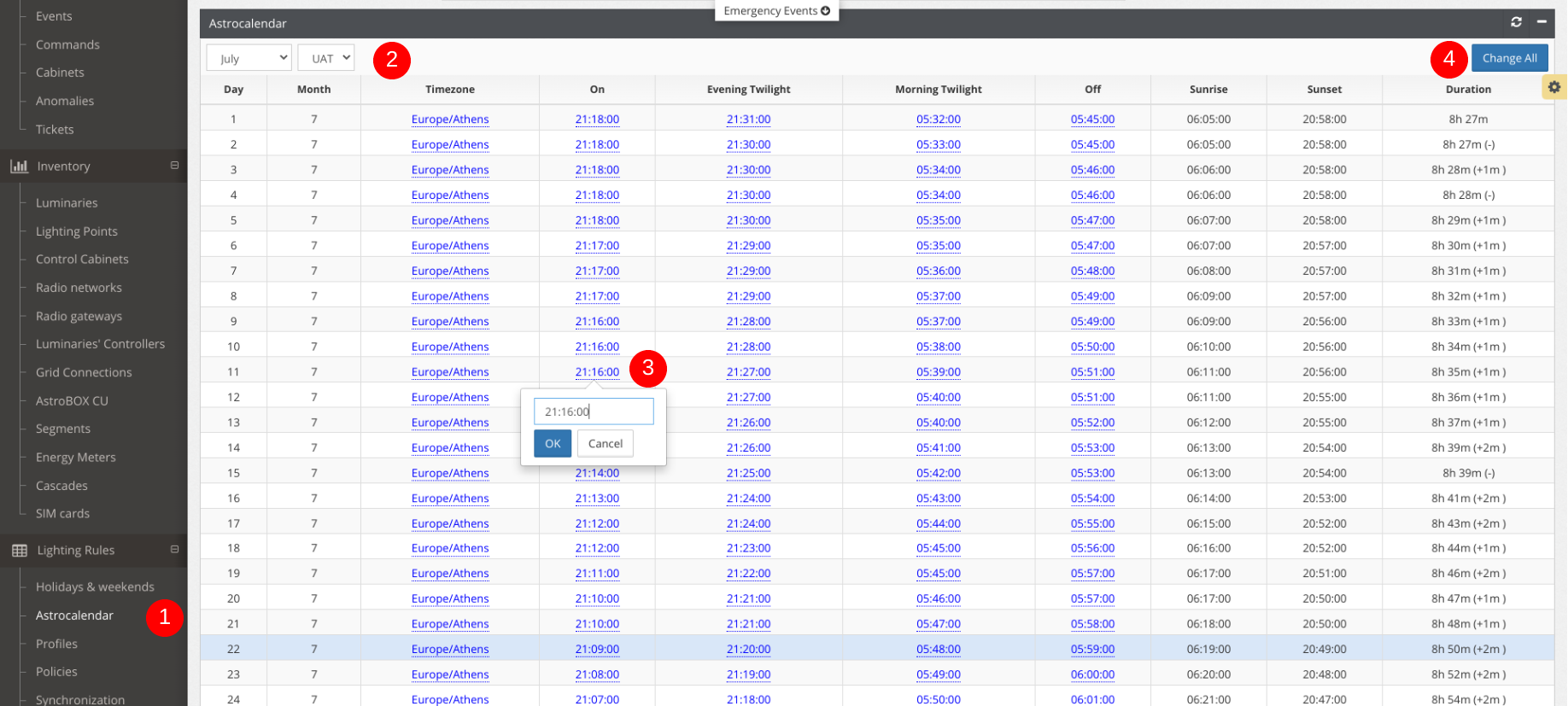

- Go to Lighting Rules->Astrocalendar.
- Choose Month and Region.
- Change On/Off time individually.

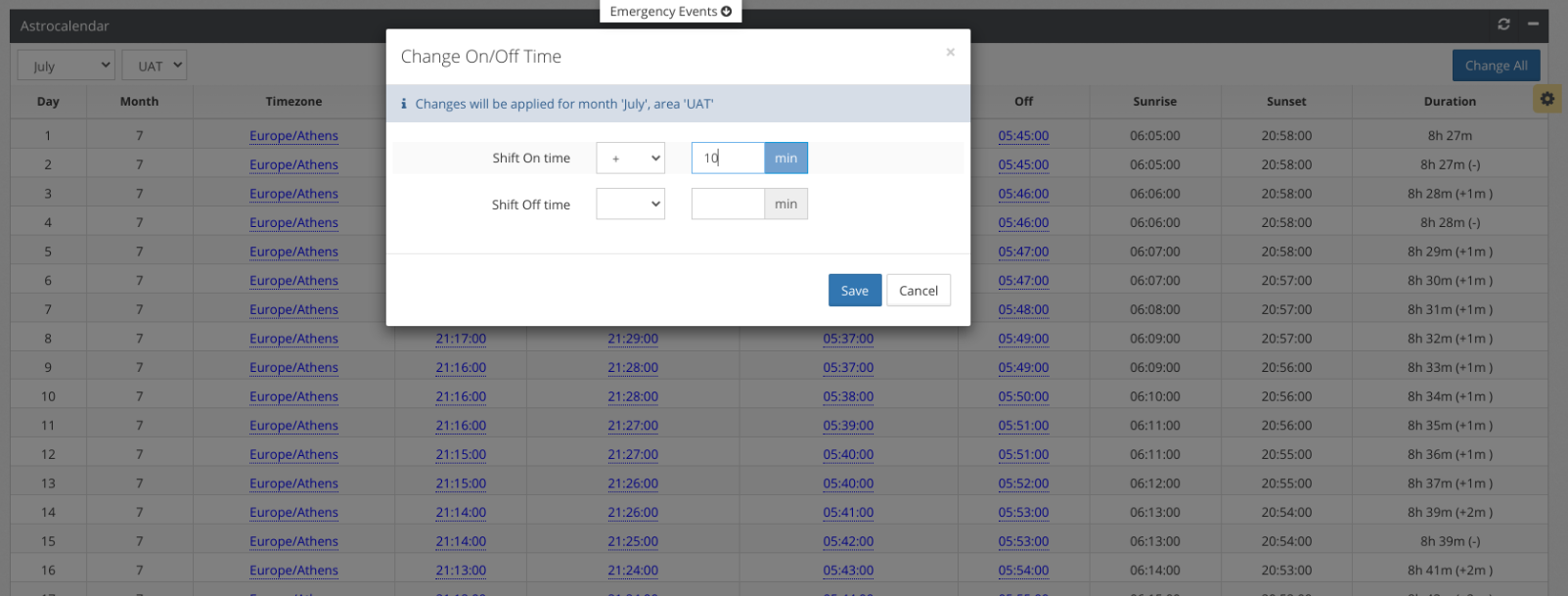

- Change On/Off time for all days of the month.
It’s possible to set ON/OFF time later or earlier for every day of the visibly month.
Important: Changes are not applying to the controllers immediately. Do not forget next steps, otherwise schedule inside controllers and in the system unsynchronized.
Step 2: Apply Schedule Changes to the Controllers

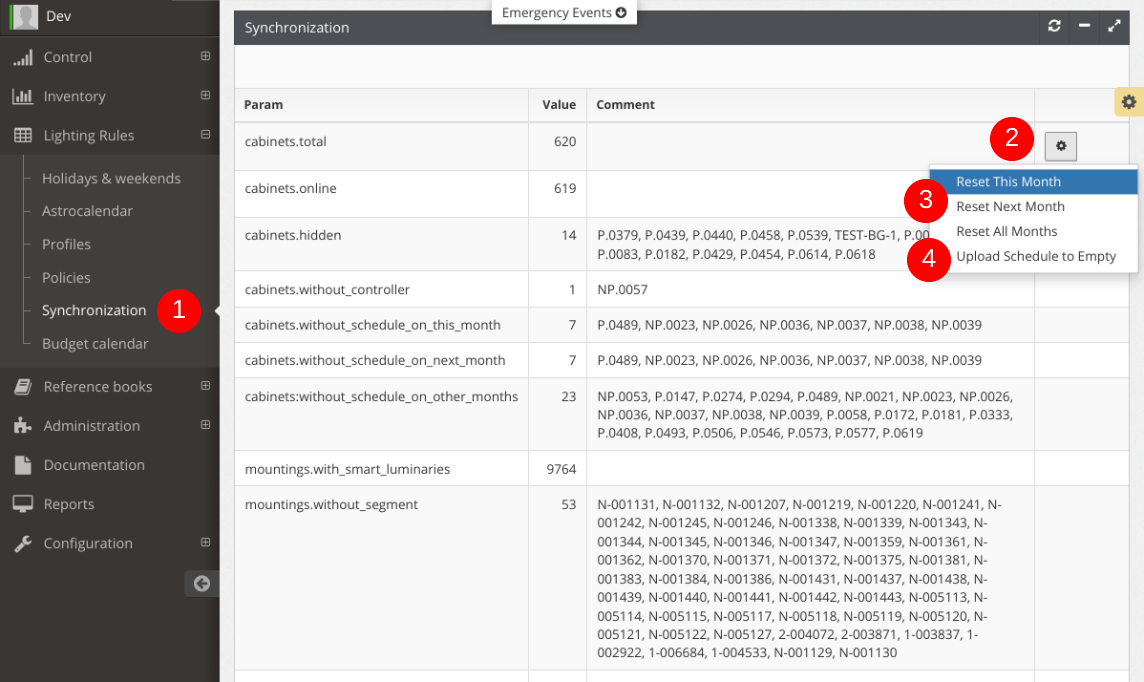

- Go to Lighting Rules->Synchronization.
- Select row cabinets.total. Click to the button Settings.
- Select menu item Reset This Month, Reset Next Month or Reset All Months, to clean link between controller and schedule in the database for this, next or all months. Reset operation changes data only in the System database. A schedule uploaded inside controller before, remains without changes.
- Select Upload Schedule to Empty. Uploading process will start and running in the background.
All Synchronization parameters are described in the Synchronization Params.
A single SLCC shall use different ON/OFF schedule.
Step 1: Change Schedule
- Contact support. Ask to add new Region. At the moment, it can be introduced manual only.
- See [above](#Step 1: Change Schedule)
Step 2: Apply Schedule Changes to the Controller
-

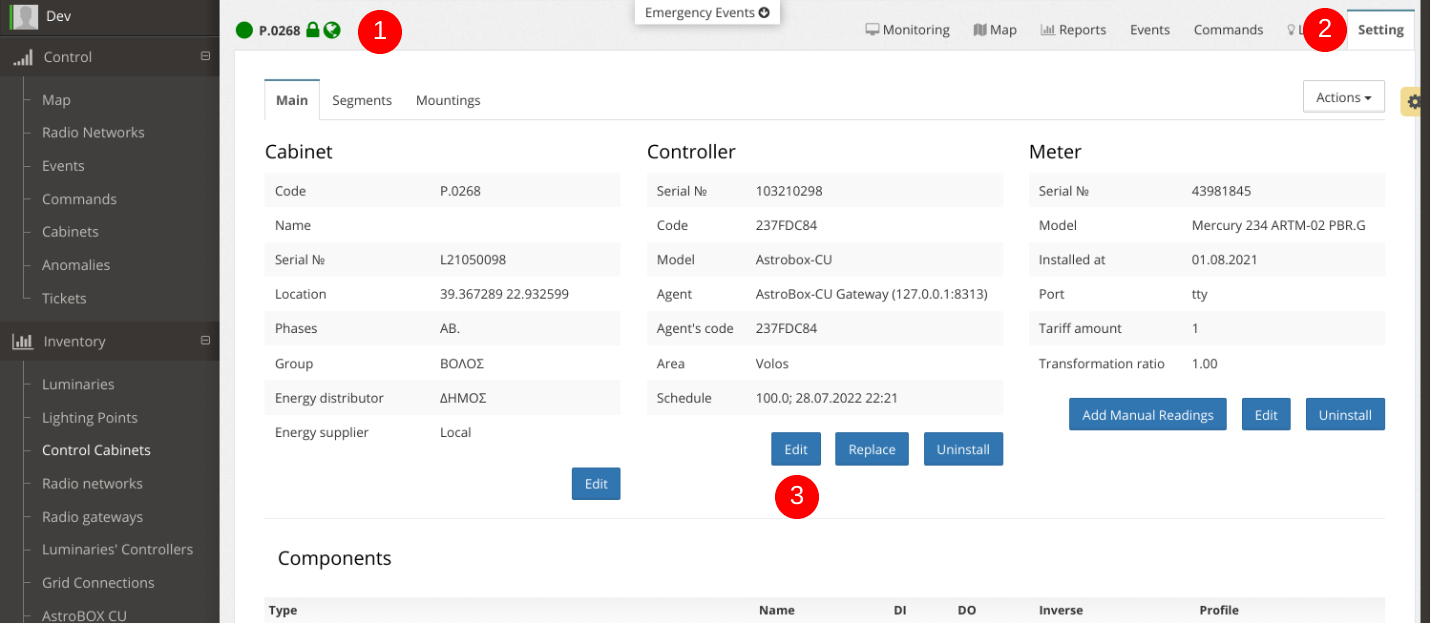

Go to SLCC page.
-
Go to Tab Settings
-
Click button Edit in section Controller.
-

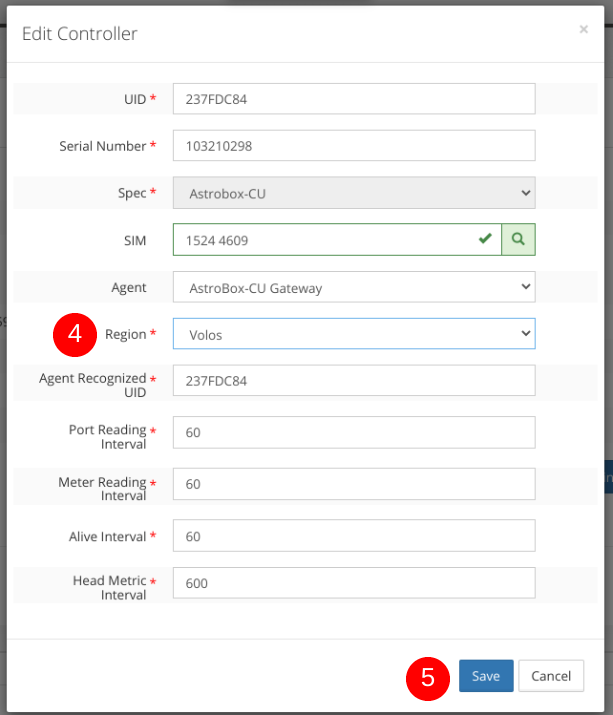

Replace Region by new one.
-
Click button Save.
-

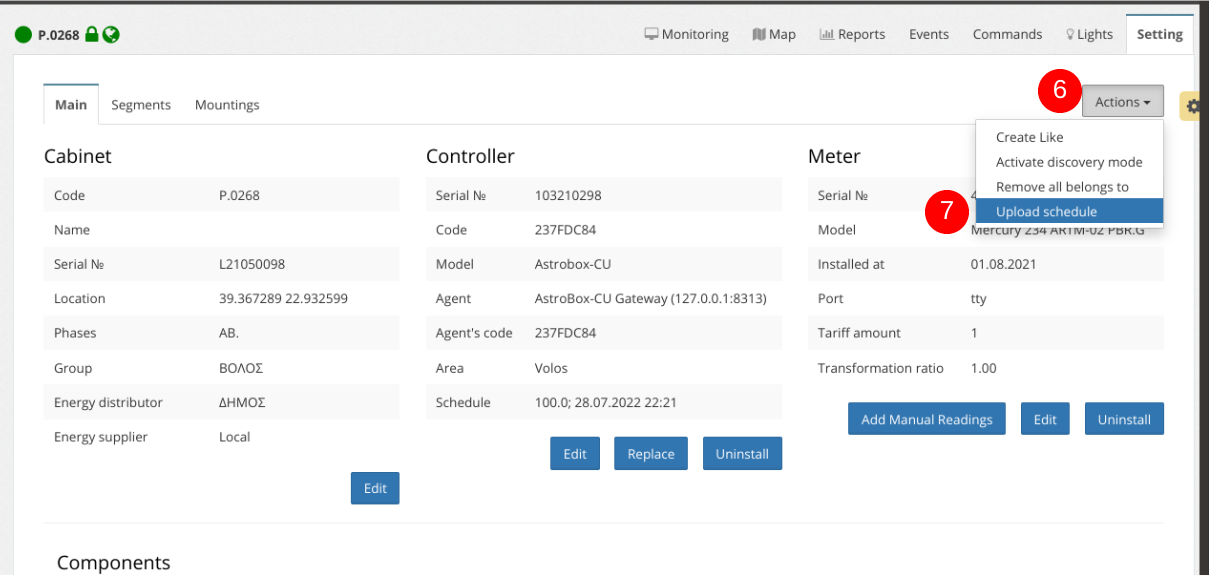

Click button Actions on the right to corner of the page.
-
Select menu item Upload schedule to cabinet. Uploading process will start and running in the background.
